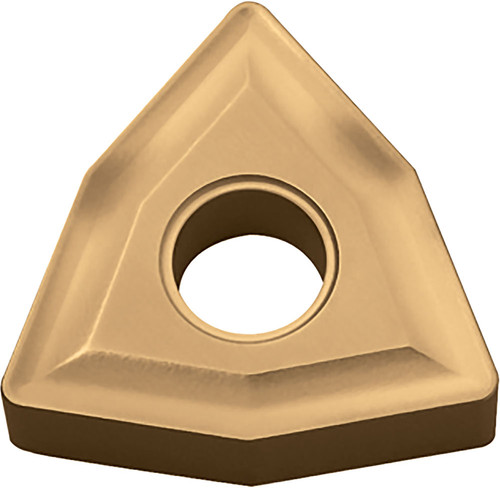

Kyocera WNMG 431 PV730 Grade PVD Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLP00538
$18.89
Kyocera WNMG431 PV730 Grade PVD Cermet, 0 Degree, Trigon, Negative Rake Angle, Neutral Turning Insert for Heavy Interruption and Roughing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/64 Inch
Included Angle
80 degrees
Thickness
3/16 Inch
Style
WNMG
Application
Boring, External Turning, Facing, Internal Facing
Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Size
431
Old Material Number
8866317
ANSI Part Number
WNMG431PV730
ISO Part Number
WNMG080404
Rake
Negative
Material Group / Grade
PV730
Corner Radius (Metric)
0.40
Number of Cutting Edges
6
Thickness (Metric)
4.76
Cutting Range
Roughing
Usage Classification
Heavy Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
Kyocera WNMG 431 PV730 Grade PVD Cermet, Indexable Turning Insert
$18.89
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
