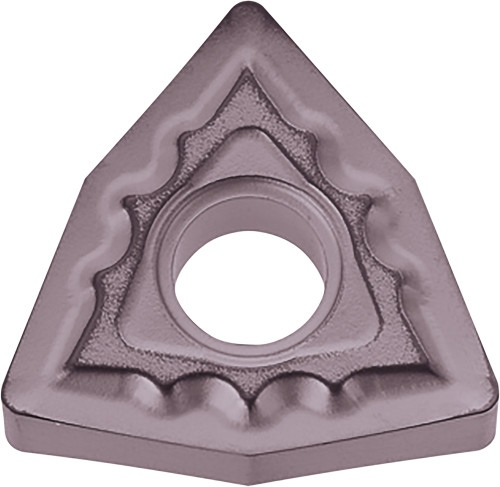

Kyocera Turning Insert WNMG432TK PR1535: TLC40111

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC40111
$20.42

Kyocera ISOI turning insert for stainless steel and high-temp alloys, 1/2 in (12.70 mm) IC, 80 degree trigon shape, negative rake, 6 cutting edges, medium-roughing cutting range, screw or clamp insert holding, neutral hand. Carbide, MEGACOAT NANO (PVD) coating. Manufacturer part number TLC40111.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
MEGACOAT NANO
IC Size (Metric)
12.70
Corner Radius (Fractional)
1/32
Included Angle
80
ANSI Designation
WNMG432TKPR1535
Insert Style
WNMG
Insert Thickness (Metric)
4.76
Insert Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Insert Size
432
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Grade
PR1535
Rake
Negative
Insert Thickness (Fractional)
3/16
Corner Radius (Metric)
0.80
Number of Cutting Edges
6
Workpiece Material
Stainless Steel, High-Temp Alloy
ISO Designation
WNMG080408TK
Cutting Range
Medium-Roughing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/2
Coating Process
PVD
Chip Breaker Type
TK
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/PR1535_for_Turning.pdf
