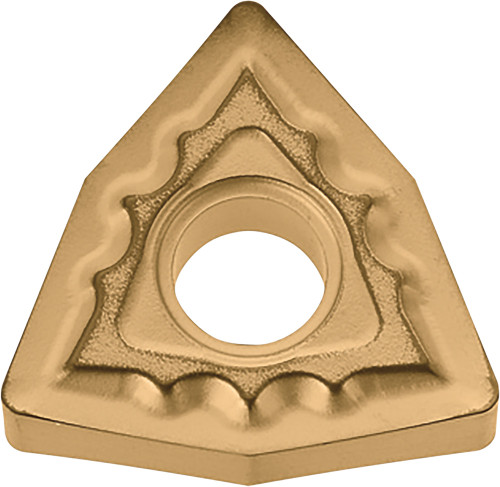

Kyocera Turning Insert WNMG432TK CA6515: TJU08642

Kyocera Turning Insert WNMG432TK CA6515, manufacturer part number TJU08642.

Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8822354; Rake: Negative; Number of Cutting Edges: 6; Cutting Range: Medium-Roughing; Usage Classification: Continuous; Insert Size: 432; Hand Direction: Neutral; Insert Style: WNMG; Insert Shape: 80 Degree Trigon; ANSI Designation: WNMG432TKCA6515; Chip Breaker Type: TK; ISO Designation: WNMG080408TK; Included Angle: 80 degrees; Machining Operations: Boring, External Turning, Facing, Internal Facing; Insert Grade: CA6515; Workpiece Material: Stainless Steel, High-Temp Alloy; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.
