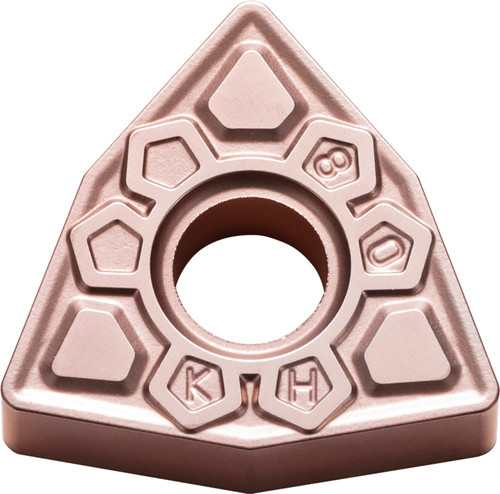

Kyocera Turning Insert WNMG434KH CA320: TME08674

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TME08674
$19.23

Kyocera ISOI turning insert for cast iron, 1/2 in (12.70 mm) IC, 80 degree trigon shape, negative rake, 6 cutting edges, medium-roughing cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/Ti (CVD) coating. Manufacturer part number TME08674.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/Ti
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/16
Included Angle
80
ANSI Designation
WNMG434KHCA320
Insert Style
WNMG
Insert Thickness (Metric)
4.76
Insert Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Insert Size
434
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Grade
CA320
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
1.60
Number of Cutting Edges
6
Workpiece Material
Cast Iron
ISO Designation
WNMG080416KH
Cutting Range
Medium-Roughing
Usage Classification
Continuous to Heavy Interruption
IC Size (Fractional)
1/2
Coating Process
CVD
Chip Breaker Type
KH
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA3-Series_W.pdf
