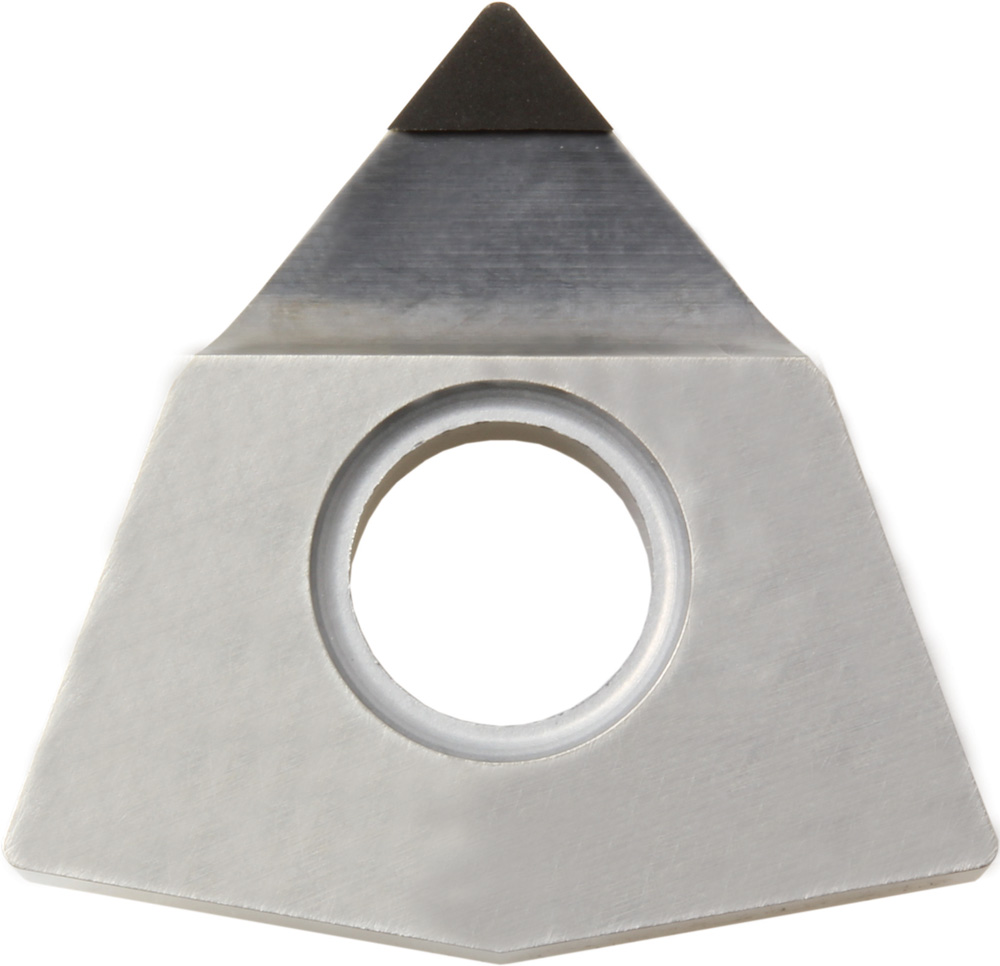

Kyocera Turning Insert WNMM431MSE KPD010: TBE02451

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBE02451
$72.02

Kyocera ISOI turning insert for non-ferrous metals and high-temp alloys, 1/2 in (12.70 mm) IC, 80 degree trigon shape, negative rake, 1 cutting edge, finishing-medium cutting range, screw or clamp insert holding, neutral hand. PCD, uncoated. Manufacturer part number TBE02451.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
PCD
Coating/Finish
Uncoated
IC Size (Metric)
12.70
Corner Radius (Fractional)
1/64
Included Angle
80
ANSI Designation
WNMM431MSEKPD010
Insert Style
WNMM
Insert Thickness (Metric)
4.76
Insert Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Insert Size
431
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Grade
KPD010
Rake
Negative
Insert Thickness (Fractional)
3/16
Corner Radius (Metric)
0.40
Number of Cutting Edges
1
Workpiece Material
Non-Ferrous, High-Temp Alloy
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Fractional)
1/2
ISO Designation
WNMM080404M-SE
Kyocera Turning Insert WNMM431MSE KPD010: TBE02451
$72.02
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
