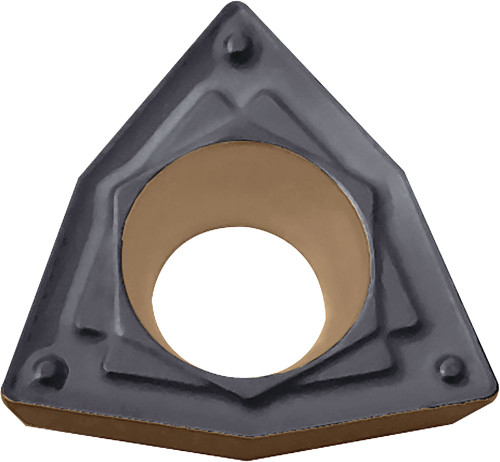

Kyocera WPMT 21505HQ CA125P Grade CVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMK00470
$26.50
Kyocera WPMT 21505HQ CA125P Grade CVD Carbide, 80 Degree Trigon, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing-Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
80 degrees
Thickness
3/32 Inch
Style
WPMT
Application
Boring
Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Size
21505
ANSI Part Number
WPMT21505HQCA125P
ISO Part Number
WPMT110202HQ
Rake
Positive
Material Group / Grade
CA125P
Corner Radius (Metric)
0.20
Number of Cutting Edges
3
Thickness (Metric)
2.38
Chipbreaker
HQ
Cutting Range
Finishing-Medium
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/CA115P_CA125P_CVD_Coated_Carbide_for_Steel.pdf
