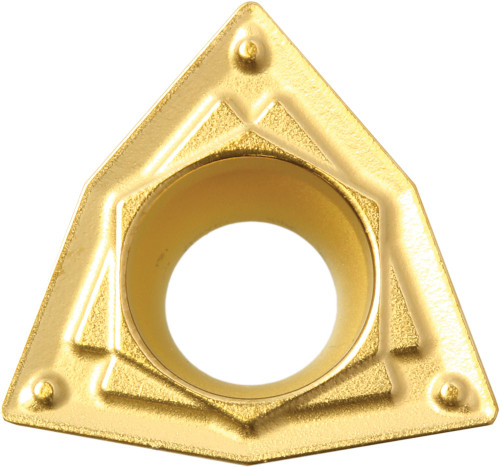

Kyocera Turning Insert WPMT21505HQ CA525: TAC08710

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAC08710
$20.87

Kyocera ISOI turning insert for steel, 1/4 in (6.35 mm) IC, 80 degree trigon shape, positive rake, 3 cutting edges, finishing-medium cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TAC08710.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
IC Size (Metric)
6.35
Included Angle
80
Corner Radius (Decimal)
0.0080
Insert Style
WPMT
Insert Thickness (Fractional)
3/32
Insert Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Insert Size
21505
Insert Thickness (Metric)
2.38
Machining Operations
Boring
Rake
Positive
IC Size (Fractional)
1/4
Corner Radius (Metric)
0.20
Number of Cutting Edges
3
Insert Grade
CA525
Chip Breaker Type
HQ
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Light Interruption
ISO Designation
WPMT110202HQ
Workpiece Material
Steel
ANSI Designation
WPMT21505HQCA525
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA5_Series_W.pdf
Coating Process
CVD
