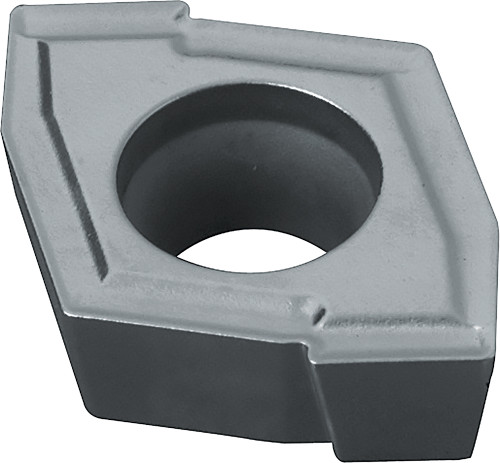

Kyocera ZCMT 06T204 KW10 Grade Uncoated Carbide, Indexable Drilling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE05000
$22.17
Kyocera ZCMT 06T204 KW10 Grade Uncoated Carbide, Right-Hand Drilling Insert for (N) Non-Ferrous Metals (DRZ Magic Drill)

Specifications

Series
DRZ
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials
Type
Magic Drill
Corner Radius
0.40 mm
Corner Radius (Fractional)
1/64
Grade
KW10
Thickness
2.80 mm
Style
ZCMT
Application
Drilling
Thickness (Decimal)
0.11
Shape
Irregular
Insert Holding Method
Screw
Insert Length (Decimal)
0.28
Insert Length (Metric)
7
Size
06T204
Old Material Number
8804253
ANSI Part Number
ZCMT06T204KW10
ISO Part Number
ZCMT06T204
Rake
Positive
Number of Cutting Edges
4
Pack quantity
10
Kyocera ZCMT 06T204 KW10 Grade Uncoated Carbide, Indexable Drilling Insert
$22.17
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
