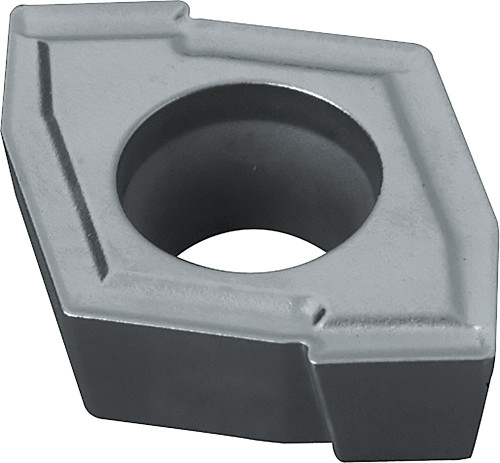

Kyocera Drill Insert ZCMT10T304 KW10: TWE05020

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE05020
$25.69

Kyocera Drill Insert ZCMT10T304 KW10, manufacturer part number TWE05020.

Specifications: Insert Thickness: 3.97 mm (5/32 in); Corner Radius: 0.40 mm (1/64 in); Insert Holding Method: Screw; Insert Length: 12.00 mm (0.4724 in); Old Material Number: 8804264; Rake: Positive; Number of Cutting Edges: 4; Insert Size: 10T304; Hand Direction: Right; Insert Style: ZCMT; Insert Shape: Irregular; ANSI Designation: ZCMT10T304KW10; ISO Designation: ZCMT10T304; Machining Operations: Drilling; Insert Grade: KW10; Workpiece Material: Non-Ferrous.

Material: Carbide. Coating/Finish: Uncoated. Series: DRZ. Unit of measure: Metric.

Specifications

Series
DRZ
Unit of Measure
Metric
Hand Direction
Right
Material
Carbide
Coating/Finish
Uncoated
ANSI Designation
ZCMT10T304KW10
ISO Designation
ZCMT10T304
Corner Radius (Metric)
0.40
Insert Thickness (Fractional)
5/32
Insert Thickness (Metric)
3.97
Corner Radius (Fractional)
1/64
Insert Style
ZCMT
Machining Operations
Drilling
Insert Shape
Irregular
Insert Holding Method
Screw
Insert Length (Decimal)
0.4724
Insert Length (Metric)
12.00
Insert Size
10T304
Old Material Number
8804264
Insert Grade
KW10
Workpiece Material
Non-Ferrous
Rake
Positive
Number of Cutting Edges
4
Pack quantity
10
Kyocera Drill Insert ZCMT10T304 KW10: TWE05020
$25.69
