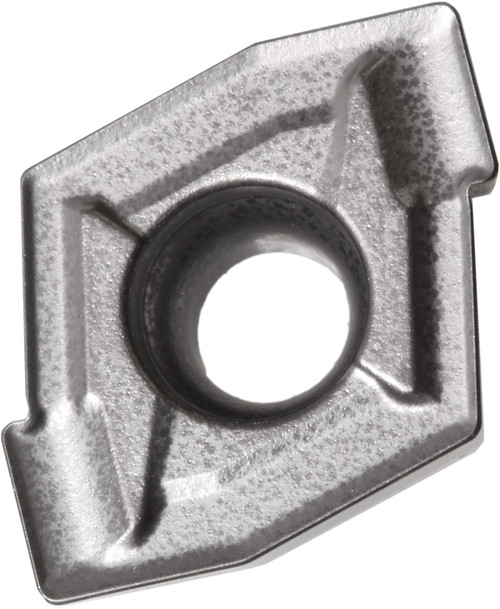

Kyocera Drill Insert ZCMT10T304SP KW10: TWE05053

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE05053
$25.69

Kyocera DRZ drill insert for non-ferrous metals, irregular shape, positive rake, 4 cutting edges, screw insert holding, right hand. Carbide, uncoated. Manufacturer part number TWE05053.

Specifications

Series
DRZ
Unit of Measure
Metric
Hand Direction
Right
Material
Carbide
Coating/Finish
Uncoated
ANSI Designation
ZCMT10T304SPKW10
ISO Designation
ZCMT10T304SP
Corner Radius (Metric)
0.40
Insert Thickness (Fractional)
5/32
Insert Thickness (Metric)
3.97
Corner Radius (Fractional)
1/64
Insert Style
ZCMT
Machining Operations
Drilling
Chip Breaker Type
SP
Insert Shape
Irregular
Insert Holding Method
Screw
Insert Length (Decimal)
0.4724
Insert Length (Metric)
12.00
Insert Size
10T304
Insert Grade
KW10
Workpiece Material
Non-Ferrous
Rake
Positive
Number of Cutting Edges
4
Pack quantity
10
Kyocera Drill Insert ZCMT10T304SP KW10: TWE05053
$25.69
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
