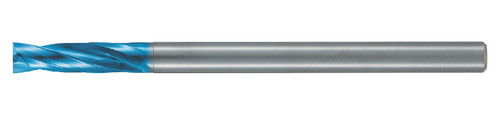

L9816 Aqua EX Flat Bottom Long Shank - 3.5mm

Nachi

No reviews yet Write a Review
SKU:
NAC-0717753
$124.51

Nachi Drill, manufacturer part number 0717753.

Specifications: Cutting Diameter: 3.50 mm (0.1378 in); Flute Length: 16.00 mm; Overall Length: 100.00 mm; Shank Diameter: 6.00 mm; Point Angle: 180 degrees; Drill Bit Type: Carbide Flat 10D Drill Bit; Point Type: Flat; Coolant Option: External Coolant; Shank Type: Straight.

Unit of measure: Metric.

Specifications

Coating/Finish
Aqua Ex
Coolant Through
No
Cutting Direction
Right
Cutting Diameter (Metric)
3.50
Diameter Fractional Equivalent (Decimal)
0.14
Drill Bit Type
Carbide Flat 10D Drill Bit
Drill Suitable for Drilling in
Structural Steel, Carbon Steel, Pre-Hardened Steel, Alloy Steel, Hardened Steels, Mold Steels 40~50HRC Hardened Steel, 400 Series Stainless Steel, Cast Iron, Aluminum Alloys, Copper Alloys
Flute Length (Metric)
16.00
Flute Type
Conventional Spiral
Material
Solid Carbide
Number of Flutes
2
Overall Length (Metric)
100.00
Point Angle
180 degrees
Point Type
Flat
Series
L9816
Shank Type
Straight
Unit of Measure
Metric
Coolant Option
External Coolant
Cutting Diameter (Decimal)
0.1378
Shank Diameter (Metric)
6.00
Size System
Metric
L9816 Aqua EX Flat Bottom Long Shank - 3.5mm
AQUA EX FLAT DRILL EXTD. LENGTH-CARBIDE METRIC View full description
$124.51
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
