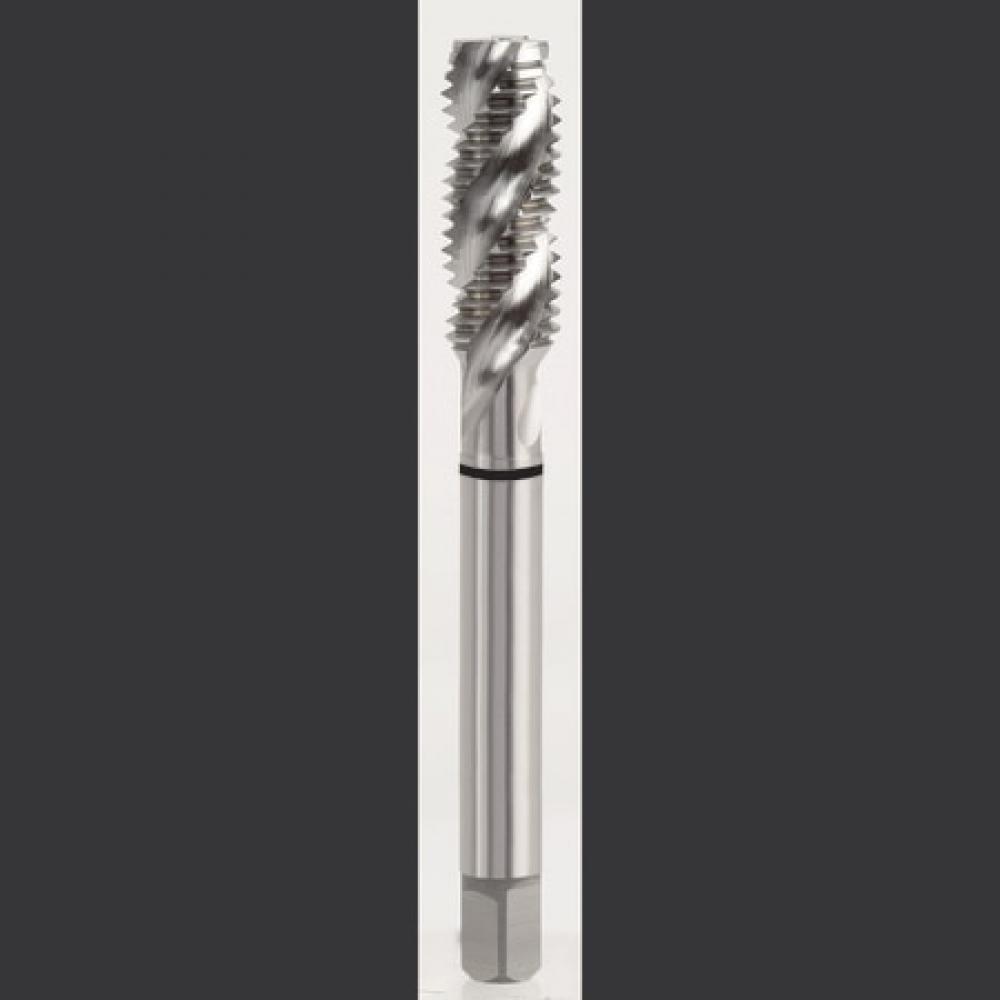

YG-1 Spiral Flute Tap: M10 x 1.5, D6, Bottoming, 3 Flute, TiN, T8A85426

YG-1

No reviews yet Write a Review
SKU:
YG1-T8A85426
$38.58

YG-1 spiral flute tap for steel, 50 degree helix, bottoming chamfer, square shank. TiN coating. Manufacturer part number T8A85426.

Specifications

Unit of Measure
Metric
Workpiece Material
Steel
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
2.9370
Coating/Finish
TiN
Shank Diameter (Decimal)
0.3810
Shank Diameter (Metric)
9.68
Overall Length (Metric)
74.60
Helix Angle
50 degrees
Performance Class
General Purpose
Thread Standard
M
Thread Size
M10 x 1.5
LxD Ratio
2.5xD
Thread Limit
D6
Chamfer
Bottoming
Thread Pitch (mm)
1.50
Blank Standard
302
Chamfer Length
1.5P-2P
Secondary Workpiece Material
Stainless Steel, Cast Iron, Non-Ferrous
Drill Size (Decimal)
0.3400
Drill Size (Metric)
8.64
Square Length (Decimal)
0.4400
Square Length (Metric)
11.18
Square Size (Decimal)
0.2860
Square Size (Metric)
7.26
Thread Length (Decimal)
1.2520
Thread Length (Metric)
31.80
