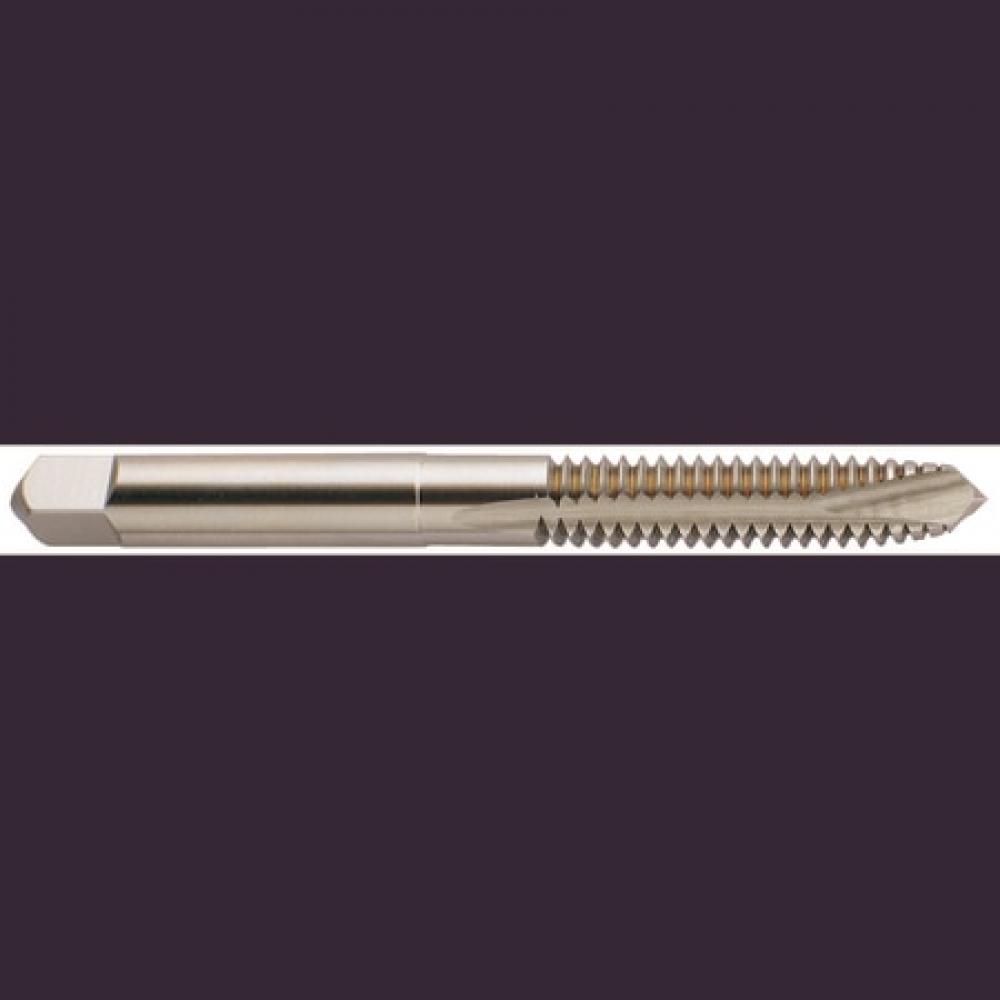

M3x0.5 D3 49.2L 2FL SP FL PLUG STEAM OXIDE TAP FOR GENERAL PURPOSE

YG-1

No reviews yet Write a Review
SKU:
YG1-T6A85203
$22.22

Specifications

Unit of Measure
Imperial
Diameter
0.12 Inch
Number Of Flutes
2
Shank Type
Square
Overall Length
1.94 Inch
Cutting Direction
Right
Material
HSS
Coating/Finish
Oxide
Shank Diameter (Decimal)
0.15
Shank Diameter (Metric)
3.58
Overall Length (Metric)
49.28
Helix Angle
50 degrees
Type
General Purpose
Through Coolant
No
Diameter (Metric)
3
Thread Standard
M
Thread Size
M3
Depth Of Cut
2.50 x D
Thread Limit
D3
Chamfer
Plug
Thread Pitch
0.50
Blank Standard
302
Chamfer Length
4P-5P
Connection (Decimal)
0.15 x 0.11
Connection (Metric)
3.58 x 2.79
Drill Size (Decimal)
0.11
Drill Size (Metric)
2.55
Square Length (Decimal)
0.19
Square Length (Metric)
4.83
Square Size (Decimal)
0.11
Square Size 2 (Decimal)
0.19
Square Size (Metric)
2.79
Square Size 2 (Metric)
4.83
Thread Length (Decimal)
0.63
Thread Length (Metric)
16
Useable Length (Decimal)
0.63
Useable Length (Metric)
16
M3x0.5 D3 49.2L 2FL SP FL PLUG STEAM OXIDE TAP FOR GENERAL PURPOSE
$22.22
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
