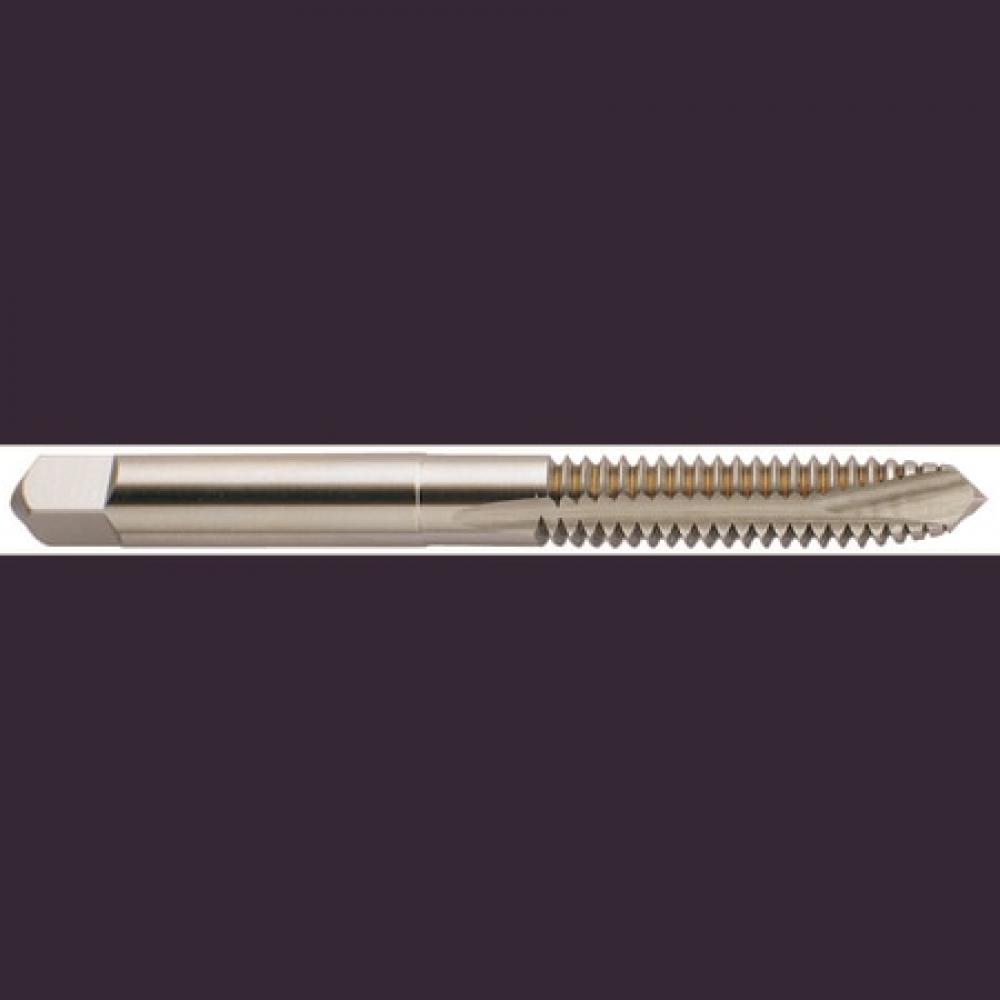

2FL HSS SP PT PLUG STEAM OXIDE TAP FOR GENERAL PURPOSE

YG-1

No reviews yet Write a Review
SKU:
YG1-T6216165
$14.34

Specifications

Unit of Measure
Imperial
Diameter
0.12 Inch
Number Of Flutes
2
Shank Type
Square
Overall Length
1.88 Inch
Cutting Direction
Right
Material
HSS
Coating/Finish
Oxide
Shank Diameter (Decimal)
0.15
Shank Diameter (Metric)
3.58
Overall Length (Metric)
47.75
Type
General Purpose
Through Coolant
No
Diameter (Metric)
2.84
Thread Standard
UNC
Thread Size
#4
Depth Of Cut
3 x D
Thread Limit
H5
Chamfer
Plug
Thread Pitch
40
Blank Standard
302
Chamfer Length
4P-5P
Connection (Decimal)
0.15 x 0.11
Connection (Metric)
3.58 x 2.79
Drill Size (Decimal)
0.09
Drill Size (Metric)
2.27
Square Length (Decimal)
0.19
Square Length (Metric)
4.83
Square Size (Decimal)
0.11
Square Size 2 (Decimal)
0.19
Square Size (Metric)
2.79
Square Size 2 (Metric)
4.83
Thread Length (Decimal)
0.56
Thread Length (Metric)
14.22
Useable Length (Decimal)
0.56
Useable Length (Metric)
14.22
2FL HSS SP PT PLUG STEAM OXIDE TAP FOR GENERAL PURPOSE
$14.34
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
