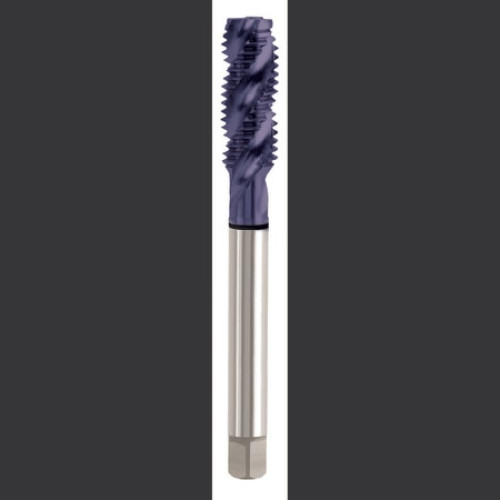

M4.0 x 0.7 D4 HSS-EX COMBO MODI SP FL TICN COATED DIN LNGT ANSI SHK TAP

YG-1

No reviews yet Write a Review
SKU:
YG1-TA244C
$27.82

Specifications

Unit of Measure
Metric
Shank Type
Square
Overall Length (Decimal)
2.4800
Material
HSS
Coating/Finish
TiCN
Shank Diameter (Decimal)
0.1680
Shank Diameter (Metric)
4.27
Overall Length (Metric)
62.99
Helix Angle
40 degrees
Thread Standard
M
Thread Size
M4 x 0.7
LxD Ratio
2.5xD
Thread Limit
D4
Thread Pitch (mm)
0.70
Blank Standard
DIN/ANSI
Chamfer Length
2P-3P
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous
Drill Size (Metric)
3.36
Square Length (Decimal)
0.2500
Square Length (Metric)
6.35
Square Size (Decimal)
0.1310
Square Size (Metric)
3.33
Thread Length (Decimal)
0.2760
Thread Length (Metric)
7.01
Usable Length (Decimal)
0.7680
Usable Length (Metric)
19.51
M4.0 x 0.7 D4 HSS-EX COMBO MODI SP FL TICN COATED DIN LNGT ANSI SHK TAP
$27.82
