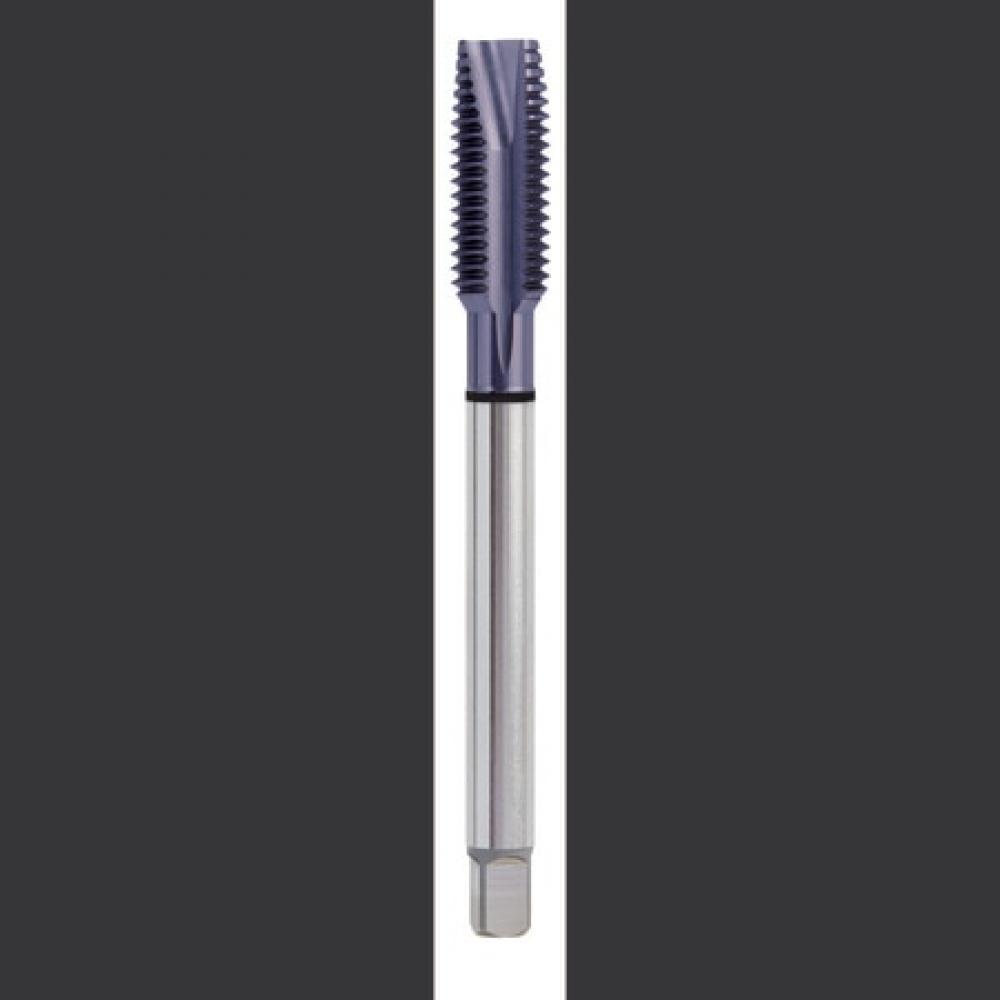

YG-1 Spiral Flute Tap: M4 x 0.7, D4, TiCN, HSS, T9244C

YG-1

No reviews yet Write a Review
SKU:
YG1-T9244C
$24.51

YG-1 spiral flute tap for steel, stainless steel, cast iron and non-ferrous metals, 40 degree helix, square shank. HSS, TiCN coating. Manufacturer part number T9244C.

Specifications

Unit of Measure
Metric
Shank Type
Square
Overall Length (Decimal)
2.1260
Material
HSS
Coating/Finish
TiCN
Shank Diameter (Decimal)
0.1680
Shank Diameter (Metric)
4.27
Overall Length (Metric)
54.00
Helix Angle
40 degrees
Thread Standard
M
Thread Size
M4 x 0.7
LxD Ratio
2.5xD
Thread Limit
D4
Thread Pitch (mm)
0.70
Blank Standard
302A
Chamfer Length
1P-2P
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous
Drill Size (Metric)
3.36
Square Length (Decimal)
0.2500
Square Length (Metric)
6.35
Square Size (Decimal)
0.1310
Square Size (Metric)
3.33
Thread Length (Decimal)
0.2760
Thread Length (Metric)
7.01
Usable Length (Decimal)
0.7680
Usable Length (Metric)
19.51
YG-1 Spiral Flute Tap: M4 x 0.7, D4, TiCN, HSS, T9244C
$24.51
