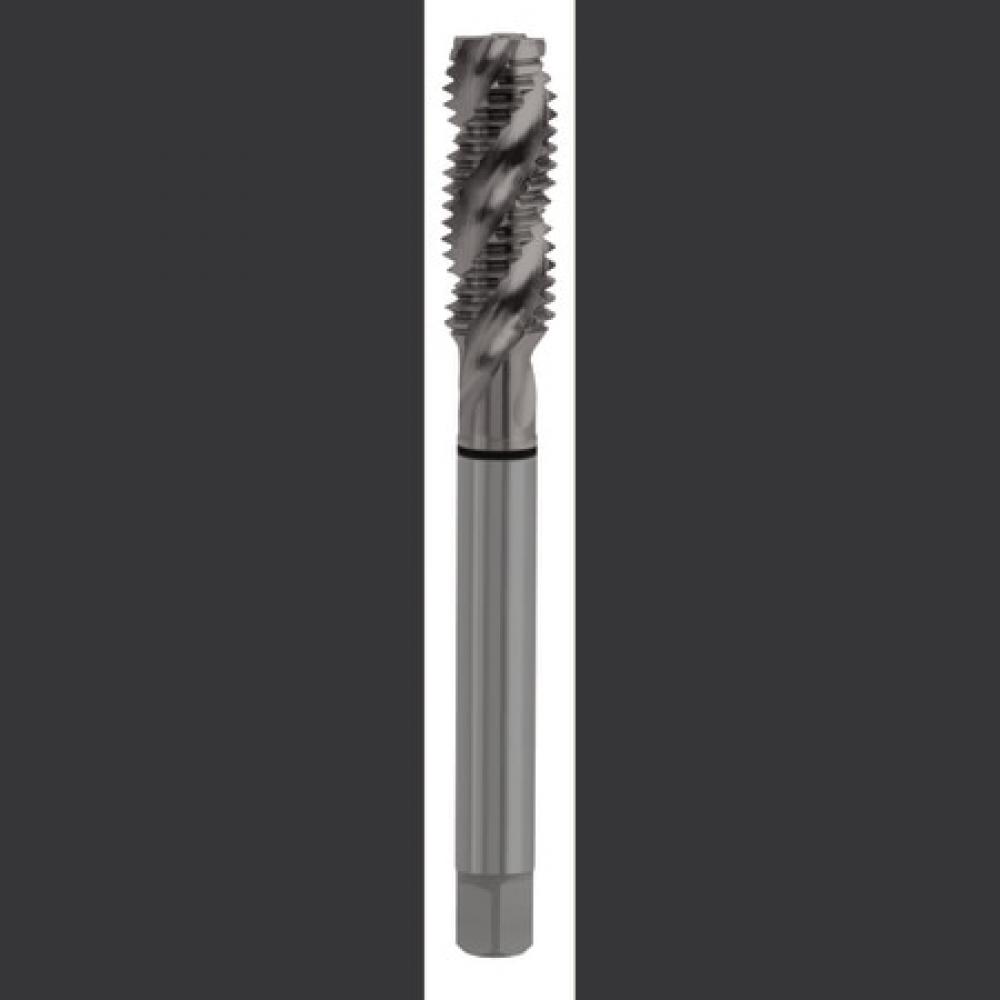

M8 X 1.25, D5 3FL SPIRAL FLUTED COMBO TAP

YG-1

No reviews yet Write a Review
SKU:
YG1-T5365
$26.40

Specifications

Unit of Measure
Metric
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
2.7200
Cutting Direction
Right
Coating/Finish
Bright/Uncoated
Shank Diameter (Decimal)
0.3180
Shank Diameter (Metric)
8.08
Overall Length (Metric)
69.09
Helix Angle
40 degrees
Neck Diameter (Decimal)
0.25
Neck Diameter (Metric)
6.25
Thread Standard
M
Thread Size
M8 x 1.25
LxD Ratio
2.5xD
Thread Limit
D5
Chamfer
Modified Bottoming
Thread Pitch (mm)
1.25
Blank Standard
302A
Chamfer Length
2P-3P
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous
Connection (Metric)
8.08 x 6.05
Drill Size (Decimal)
0.28
Drill Size (Metric)
6.86
Ring Color
Black
Square Length (Decimal)
0.3800
Square Length (Metric)
9.65
Square Size (Decimal)
0.2380
Square Size (Metric)
6.05
Square Size 2 (Metric)
9.65
Thread Length (Decimal)
0.4720
Thread Length (Metric)
11.99
Usable Length (Decimal)
1.1260
Usable Length (Metric)
28.60
