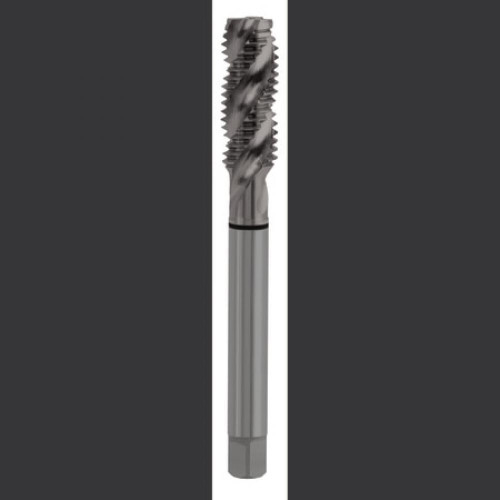

M8 X 1.25, D5 3FL SPIRAL FLUTED STEAM OXIDE COMBO TAP

YG-1

No reviews yet Write a Review
SKU:
YG1-T5365S
$26.40

Specifications

Unit of Measure
Metric
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
2.7200
Coating/Finish
Steam Oxide
Shank Diameter (Decimal)
0.3180
Shank Diameter (Metric)
8.08
Overall Length (Metric)
69.09
Helix Angle
40 degrees
Thread Standard
M
Thread Size
M8 x 1.25
LxD Ratio
2.5xD
Thread Limit
D5
Thread Pitch (mm)
1.25
Blank Standard
302A
Chamfer Length
2P-3P
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous
Drill Size (Metric)
6.86
Square Length (Decimal)
0.3800
Square Length (Metric)
9.65
Square Size (Decimal)
0.2380
Square Size (Metric)
6.05
Thread Length (Decimal)
0.4720
Thread Length (Metric)
11.99
Usable Length (Decimal)
1.1260
Usable Length (Metric)
28.60
M8 X 1.25, D5 3FL SPIRAL FLUTED STEAM OXIDE COMBO TAP
$26.40
