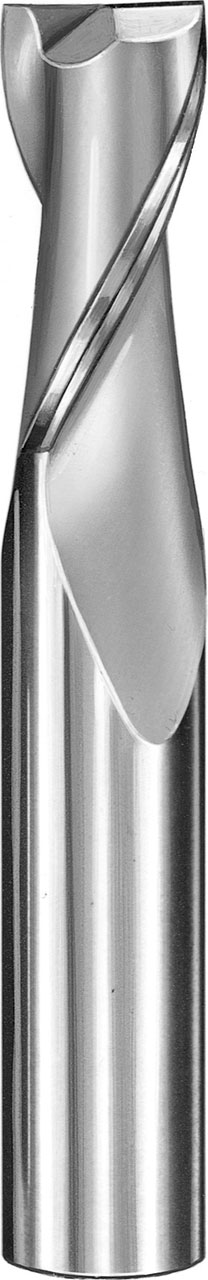

SGS 1" Dia, 2 Flute, Square End End Mill - 34534

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-34534
$2,902.93
SGS 1" Dia, 4" LOC, 1" Shank Dia, 2 Flute, 45 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series 44S, Ski-Carb, Square End End Mill - 34534

Specifications

Series
44S
Unit of Measure
Fractional
Diameter
1 Inch
Length of Cut
4 Inch
Shank Size
1 Inch
Number Of Flutes
2
Shank Type
Weldon (Drive Flat)
Overall Length
6-1/2 Inch
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
TIB2
Cutting Diameter (Decimal)
1
Cutting Diameter (Metric)
25.40
Length of Cut (Decimal)
4
Length of Cut (Metric)
101.60
Shank Diameter (Decimal)
1
Shank Diameter (Metric)
25.40
Overall Length (Decimal)
6.50
Overall Length (Metric)
165.10
Flute Type
Spiral
Helix Angle
45 degrees
End Configuration
Square End
Primary Workpiece Material
(N) Non-Ferrous Materials
Secondary Workpiece Material
Plastics & Composites
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.00051
Cutting Diameter Tolerance (Metric)
+0.000/-0.013
Shank Diameter Tolerance (ISO)
h6
Coolant Option
External Coolant
Coating Description
Ti-NAMITE-B (TIB2)
Additional Geometry
Right Hand Cut Direction (RHC)
Rake Angle
Positive
High Performance
Yes
Weldon Flat
Yes
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
SGS 1" Dia, 2 Flute, Square End End Mill - 34534
$2,902.93
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
