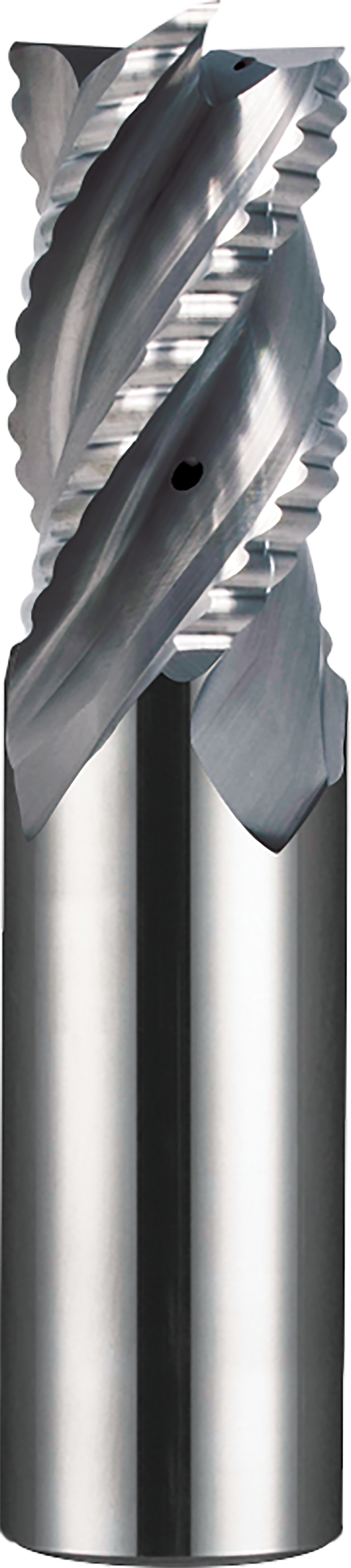

SGS 1" Dia, 1-3/4" LOC, 2-1/2" Reach, 1" Shank Dia, 0.0600" Radius, 3 Flute, Coolant-Through, 38 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series APR3, S-Carb APR-3, Chip Breaker Corner Radius End Mill - 34125
Specifications
Unit of Measure
Fractional
Overall Length
4-1/2 Inch
Coating/Finish
Ti-NAMITE-B (TIB2)
Cutting Diameter (Decimal)
1
Cutting Diameter (Metric)
25.40
Length of Cut (Decimal)
1.75
Length of Cut (Metric)
44.45
Shank Diameter (Decimal)
1
Shank Diameter (Metric)
25.40
Overall Length (Decimal)
4.50
Overall Length (Metric)
114.30
Primary Workpiece Material
(N) Non-Ferrous Materials
Neck Diameter (Decimal)
0.95
Neck Diameter (Metric)
24.13
Cutting Diameter Tolerance (Decimal)
+0.0004/-0.0039
Cutting Diameter Tolerance (Metric)
+0.010/-0.100
Shank Diameter Tolerance (ISO)
h6
Corner Radius Tolerance (Decimal)
+0.0020/-0.0020
Corner Radius Tolerance (Metric)
+0.050/-0.050
Coolant Option
Internal Coolant
Additional Geometry
Right Hand Cut Direction (RHC)
Corner Radius (Decimal)
0.06
Corner Radius (Metric)
1.52
