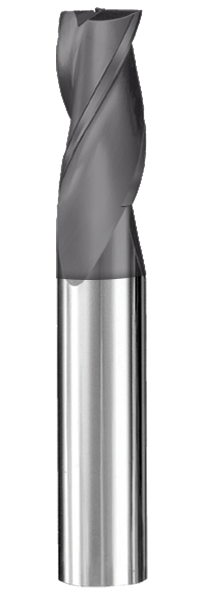

SGS Square End Mill: 10.00mm Dia, 22.00mm LOC, 75.00mm OAL, 3 Flute, AlTiN (Ti-NAMITE-A), Solid Carbide, 48812

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-48812
$133.63

SGS 05S square end mill for steel, stainless steel, cast iron, non-ferrous metals and high-temp alloys, 3 flutes, 30 degree helix, spiral flutes, center cutting, straight shank, external coolant. Solid carbide, AlTiN coating. Manufacturer part number 48812.

Specifications

Series
05S
Unit of Measure
Metric
Shank Diameter (Metric)
10.00
Length of Cut (Metric)
22.00
Overall Length (Metric)
75.00
Number of Flutes
3
Shank Type
Straight
Shank Length (Decimal)
2.0840
Hand Direction
Right
Material
Solid Carbide
Coating/Finish
AlTiN
Cutting Diameter (Decimal)
0.3937
Length of Cut (Decimal)
0.8661
Shank Diameter (Decimal)
0.3937
Overall Length (Decimal)
2.9528
Flute Type
Spiral
Helix Angle
30 degrees
Size System
Metric
Cutting Diameter (Metric)
10.00
Secondary Workpiece Material
Hardened Steel
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
End Type
Square
Coolant Option
External Coolant
Shank Length (Metric)
52.93
Performance Class
General Purpose
Rake
Positive
Shank Tolerance
h6
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous, High-Temp Alloy
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
Helix Direction
Right
Length Type
Standard
