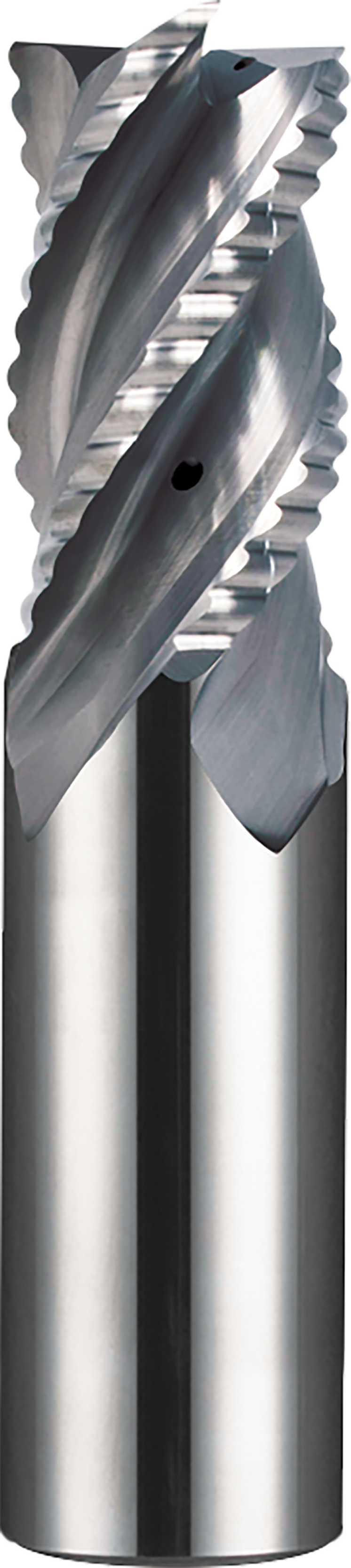

SGS 12.00mm Dia, 18.00mm LOC, 38.00mm Reach, 12.00mm Shank Dia, 3 Flute, Coolant-Through, 38 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series APR, S-Carb APR, Chip Breaker Square End Mill - 44650
Specifications
Cutting Diameter (Decimal)
0.48
Length of Cut (Decimal)
0.71
Shank Diameter (Decimal)
0.48
Overall Length (Decimal)
3.27
End Configuration
Chip Breaker (Square)
Primary Workpiece Material
(N) Non-Ferrous Materials
Neck Diameter (Decimal)
0.45
Neck Diameter (Metric)
11.38
Cutting Diameter Tolerance (Decimal)
+0.0004/-0.0020
Cutting Diameter Tolerance (Metric)
+0.010/-0.050
Shank Diameter Tolerance (ISO)
h6
Coolant Option
Internal Coolant
Coating Description
Ti-NAMITE-B (TIB2)
Additional Geometry
Right Hand Cut Direction (RHC)
