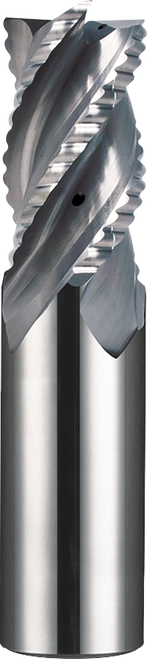

SGS 12.00mm Dia, 3 Flute, Chip Breaker Square End Mill - 44975

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-44975
$285.89
SGS 12.00mm Dia, 26.00mm LOC, 12.00mm Shank Dia, 3 Flute, Coolant-Through, 38 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series APR3, S-Carb APR-3, Chip Breaker Square End Mill - 44975

Specifications

Series
APR3
Unit of Measure
Metric
Diameter
12 mm
Length of Cut
26 mm
Shank Size
12 mm
Number Of Flutes
3
Shank Type
Straight
Overall Length
95 mm
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
TIB2
Cutting Diameter (Decimal)
0.48
Length of Cut (Decimal)
1.03
Shank Diameter (Decimal)
0.48
Overall Length (Decimal)
3.75
Flute Type
Spiral
Helix Angle
38 degrees
End Configuration
Chip Breaker (Square)
Primary Workpiece Material
(N) Non-Ferrous Materials
Cutting Diameter Tolerance (Decimal)
+0.0004/-0.0039
Cutting Diameter Tolerance (Metric)
+0.010/-0.100
Shank Diameter Tolerance (ISO)
h6
Corner Radius Tolerance (Decimal)
+0.0020/-0.0020
Corner Radius Tolerance (Metric)
+0.050/-0.050
Coolant Option
Internal Coolant
Coating Description
Ti-NAMITE-B (TIB2)
Additional Geometry
Chip Breaker / Right Hand Cut Direction (RHC)
Rake Angle
Positive
High Performance
Yes
Weldon Flat
No
Variable Helix
No
Center Cutting
Yes
Chip Breaker
Yes
SGS 12.00mm Dia, 3 Flute, Chip Breaker Square End Mill - 44975
$285.89
