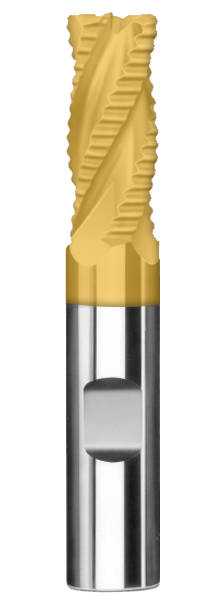

SGS 12.00mm Dia, 4 Flute, Chip Breaker Corner Radius End Mill - 46118

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-46118
$439.74
SGS 12.00mm Dia, 26.00mm LOC, 12.00mm Shank Dia, 1.52mm Radius, 4 Flute, 30 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series 61, Coarse Pitch, Chip Breaker Corner Radius End Mill - 46118

Specifications

Series
61
Unit of Measure
Metric
Length of Cut
26 mm
Shank Size
12 mm
Number Of Flutes
4
Shank Type
Weldon (Drive Flat)
Overall Length
83 mm
Material
Solid Carbide
Coating/Finish
Ti-NAMITE-A (AlTiN)
Cutting Diameter (Decimal)
0.48
Length of Cut (Decimal)
1.03
Shank Diameter (Decimal)
0.48
Overall Length (Decimal)
3.27
Flute Type
Spiral
Helix Angle
30 degrees
Primary Workpiece Material
"(P) Steel, (K) Cast Iron"
Secondary Workpiece Material
(H) Hardened Materials
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0040
Cutting Diameter Tolerance (Metric)
+0.000/-0.100
Shank Diameter Tolerance (ISO)
h6
Corner Radius Tolerance (Decimal)
+0.0050/-0.0050
Corner Radius Tolerance (Metric)
+0.127/-0.127
Coolant Option
External Coolant
Additional Geometry
Chip Breaker / Right Hand Cut Direction (RHC)
Rake Angle
Positive
DIN Standard (Shank)
DIN 6535 HB
High Performance
No
Weldon Flat
Yes
Variable Helix
No
Center Cutting
Yes
Chip Breaker
Yes
Type
Coarse Pitch
Cutting Diameter
12 mm
Corner Radius (Decimal)
0.06
Corner Radius
1.52 mm
SGS 12.00mm Dia, 4 Flute, Chip Breaker Corner Radius End Mill - 46118
$439.74
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
