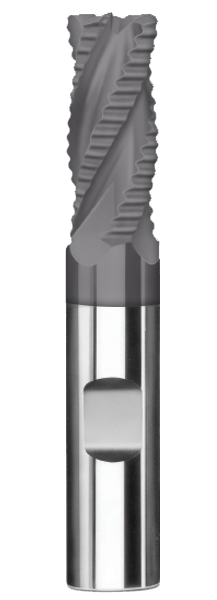

SGS Corner Radius End Mill: 12.00mm Dia, 26.00mm LOC, 83.00mm OAL, 1.52mm Corner Radius, 4 Flute, AlTiN (Ti-NAMITE-A), Solid Carbide, 46218

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-46218
$438.67

SGS Series 62 corner radius end mill for stainless steel and high-temp alloys, 4 flutes, 40 degree helix, spiral flutes, center cutting, Weldon flat shank, external coolant. Solid carbide, AlTiN coating. Manufacturer part number 46218.

Specifications

Series
62
Unit of Measure
Metric
Shank Diameter (Metric)
12.00
Length of Cut (Metric)
26.00
Number of Flutes
4
Shank Type
Weldon Flat
Overall Length (Metric)
83.00
Material
Solid Carbide
Coating/Finish
AlTiN
Cutting Diameter (Decimal)
0.4724
Length of Cut (Decimal)
1.0236
Shank Diameter (Decimal)
0.4724
Overall Length (Decimal)
3.2677
Flute Type
Spiral
Helix Angle
40 degrees
Cutting Diameter (Metric)
12.00
Secondary Workpiece Material
Hardened Steel
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0040
Cutting Diameter Tolerance (Metric)
+0.000/-0.100
Size System
Metric
Corner Radius Tolerance (Decimal)
+0.0050/-0.0050
Corner Radius Tolerance (Metric)
+0.127/-0.127
Coolant Option
External Coolant
Helix Direction
Right
Hand Direction
Right
DIN Standard (Shank)
DIN 6535 HB
End Type
Corner Radius
Performance Class
General Purpose
Variable Helix
No
Center Cutting
Yes
Chip Breaker
Yes
Type
Fine Pitch
Shank Length (Decimal)
2.2370
Corner Radius (Decimal)
0.0598
Shank Length (Metric)
56.82
Corner Radius (Metric)
1.52
Length Type
Standard
Rake
Positive
Shank Tolerance
h6
Workpiece Material
Stainless Steel, High-Temp Alloy
SGS Corner Radius End Mill: 12.00mm Dia, 26.00mm LOC, 83.00mm OAL, 1.52mm Corner Radius, 4 Flute, AlTiN (Ti-NAMITE-A), Solid Carbide, 46218
$438.67
