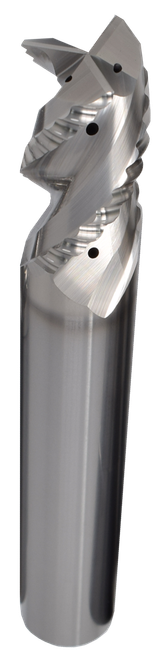

SGS 25.00mm Dia, 3 Flute, Chip Breaker Corner Radius End Mill - 44998

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-44998
$1,241.45
SGS 25.00mm Dia, 43.00mm LOC, 25.00mm Shank Dia, 3 Flute, Coolant-Through, 38 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series APR3, S-Carb APR-3, Chip Breaker Corner Radius End Mill - 44998

Specifications

Series
APR3
Unit of Measure
Metric
Length of Cut
43 mm
Shank Size
25 mm
Number Of Flutes
3
Shank Type
Straight
Overall Length
108 mm
Material
Solid Carbide
Coating/Finish
Ti-NAMITE-B (TIB2)
Cutting Diameter (Decimal)
0.99
Length of Cut (Decimal)
1.70
Shank Diameter (Decimal)
0.99
Overall Length (Decimal)
4.26
Flute Type
Spiral
Helix Angle
38 degrees
Primary Workpiece Material
(N) Non-Ferrous Materials
Cutting Diameter Tolerance (Decimal)
+0.0004/-0.0020
Cutting Diameter Tolerance (Metric)
+0.010/-0.050
Shank Diameter Tolerance (ISO)
h6
Coolant Option
Internal Coolant
Additional Geometry
Right Hand Cut Direction (RHC)
Rake Angle
Positive
High Performance
Yes
Weldon Flat
No
Variable Helix
No
Center Cutting
Yes
Chip Breaker
Yes
Type
S-Carb
Cutting Diameter
25 mm
SGS 25.00mm Dia, 3 Flute, Chip Breaker Corner Radius End Mill - 44998
$1,241.45
