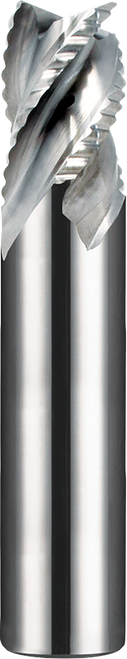

SGS 25.00mm Dia, 4 Flute, Chip Breaker Square End Mill - 45017

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-45017
$1,333.24
SGS 25.00mm Dia, 35.00mm LOC, 25.00mm Shank Dia, 4 Flute, Coolant-Through, 38 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series APR4, S-Carb APR-4, Chip Breaker Square End Mill - 45017

Specifications

Series
APR4
Unit of Measure
Metric
Diameter
25 mm
Length of Cut
35 mm
Shank Size
25 mm
Number Of Flutes
4
Shank Type
Straight
Overall Length
140 mm
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
TIB2
Cutting Diameter (Decimal)
0.99
Length of Cut (Decimal)
1.38
Shank Diameter (Decimal)
0.99
Overall Length (Decimal)
5.52
Flute Type
Spiral
Helix Angle
38/41 degrees
End Configuration
Chip Breaker (Square)
Primary Workpiece Material
(N) Non-Ferrous Materials
Cutting Diameter Tolerance (Decimal)
+0.0004/-0.0020
Cutting Diameter Tolerance (Metric)
+0.010/-0.050
Shank Diameter Tolerance (ISO)
h6
Coolant Option
Internal Coolant
Coating Description
Ti-NAMITE-B (TIB2)
Additional Geometry
Right Hand Cut Direction (RHC)
Rake Angle
Positive
High Performance
Yes
Weldon Flat
No
Variable Helix
Yes
Center Cutting
Yes
Chip Breaker
Yes
SGS 25.00mm Dia, 4 Flute, Chip Breaker Square End Mill - 45017
$1,333.24
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
