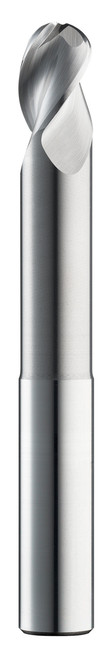

SGS 3/4" Dia, 3 Flute, Ball Nose End Mill - 34951

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-34951
$597.08
SGS 3/4" Dia, 1" LOC, 2" Reach, 3/4" Shank Dia, 3 Flute, 38 Degree Helix, Uncoated, Series 43LB, S-Carb, Ball Nose End Mill - 34951

Specifications

Series
43LB
Unit of Measure
Fractional
Length of Cut
1 Inch
Shank Size
3/4 Inch
Number Of Flutes
3
Shank Type
Straight
Overall Length
4 Inch
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
Uncoated
Cutting Diameter (Decimal)
0.75
Cutting Diameter (Metric)
19.05
Length of Cut (Decimal)
1
Length of Cut (Metric)
25.40
Shank Diameter (Decimal)
0.75
Shank Diameter (Metric)
19.05
Overall Length (Decimal)
4
Overall Length (Metric)
101.60
Flute Type
Spiral
Helix Angle
38 degrees
Primary Workpiece Material
(N) Non-Ferrous Materials
Secondary Workpiece Material
Plastics & Composites
Reach (Decimal)
2
Reach (Metric)
50.80
Reach (Fractional)
2
Neck Diameter (Decimal)
0.73
Neck Diameter (Metric)
18.54
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.00051
Cutting Diameter Tolerance (Metric)
+0.000/-0.013
Shank Diameter Tolerance (ISO)
h6
Corner Radius Tolerance (Decimal)
+0.0005/-0.0005
Corner Radius Tolerance (Metric)
+0.013/-0.013
Coolant Option
External Coolant
Additional Geometry
Right Hand Cut Direction (RHC)
Rake Angle
Positive
High Performance
Yes
Weldon Flat
No
Variable Helix
No
Center Cutting
Yes
Type
S-Carb
Cutting Diameter
3/4 Inch
SGS 3/4" Dia, 3 Flute, Ball Nose End Mill - 34951
$597.08
