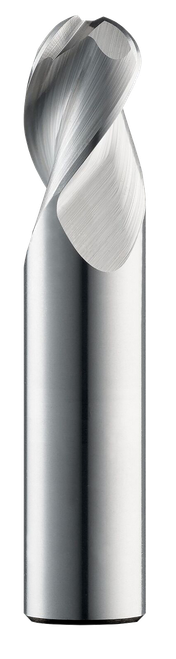

SGS 3/4" Dia, 3 Flute, Ball Nose End Mill - 34987

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-34987
$942.73
SGS 3/4" Dia, 2-1/4" LOC, 3/4" Shank Dia, 3 Flute, 38 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series 43B, S-Carb, Ball Nose End Mill - 34987

Specifications

Series
43B
Unit of Measure
Fractional
Length of Cut
2-1/4 Inch
Shank Size
3/4 Inch
Number Of Flutes
3
Shank Type
Straight
Overall Length
5 Inch
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
Ti-NAMITE-B (TIB2)
Cutting Diameter (Decimal)
0.75
Cutting Diameter (Metric)
19.05
Length of Cut (Decimal)
2.25
Length of Cut (Metric)
57.15
Shank Diameter (Decimal)
0.75
Shank Diameter (Metric)
19.05
Overall Length (Decimal)
5
Overall Length (Metric)
127
Flute Type
Spiral
Helix Angle
38 degrees
Primary Workpiece Material
(N) Non-Ferrous Materials
Secondary Workpiece Material
Plastics & Composites
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.00051
Cutting Diameter Tolerance (Metric)
+0.000/-0.013
Shank Diameter Tolerance (ISO)
h6
Corner Radius Tolerance (Decimal)
+0.0005/-0.0005
Corner Radius Tolerance (Metric)
+0.013/-0.013
Coolant Option
External Coolant
Additional Geometry
Right Hand Cut Direction (RHC)
Rake Angle
Positive
High Performance
Yes
Weldon Flat
No
Variable Helix
No
Center Cutting
Yes
Type
S-Carb
Cutting Diameter
3/4 Inch
SGS 3/4" Dia, 3 Flute, Ball Nose End Mill - 34987
$942.73
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
