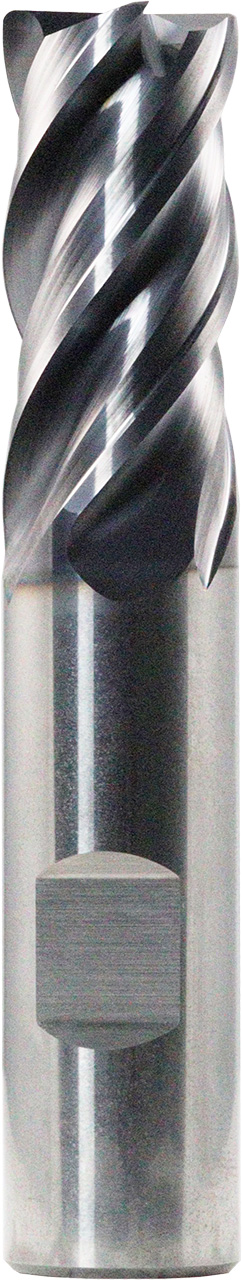

SGS Corner Radius End Mill: 3/8" Dia, 7/8" LOC, 2-1/2" OAL, .020" Corner Radius, 4 Flute, AlTiN (Ti-NAMITE-A), Solid Carbide, 36555

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-36555
$135.07

SGS ZH1C corner radius end mill for steel, stainless steel, cast iron and high-temp alloys, 4 flutes, variable helix, spiral flutes, center cutting, Weldon flat shank, external coolant. Solid carbide, AlTiN coating. Manufacturer part number 36555.

Specifications

Series
ZH1C
Unit of Measure
Inch
Shank Diameter (Fractional)
3/8
Length of Cut (Fractional)
7/8
Number of Flutes
4
Shank Type
Weldon Flat
Overall Length (Fractional)
2-1/2
Material
Solid Carbide
Coating/Finish
AlTiN
Cutting Diameter (Decimal)
0.3750
Cutting Diameter (Metric)
9.53
Length of Cut (Decimal)
0.8750
Length of Cut (Metric)
22.23
Shank Diameter (Decimal)
0.3750
Shank Diameter (Metric)
9.53
Overall Length (Decimal)
2.5000
Overall Length (Metric)
63.50
Flute Type
Spiral
Helix Angle
38-41 degrees
Cutting Diameter (Fractional)
3/8
Secondary Workpiece Material
Hardened Steel
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0016
Cutting Diameter Tolerance (Metric)
+0.000/-0.040
Shank Length (Metric)
41.28
Corner Radius Tolerance (Decimal)
+0.0000/-0.0020
Corner Radius Tolerance (Metric)
+0.000/-0.050
Coolant Option
External Coolant
Size System
Fractional
Helix Direction
Right
Hand Direction
Right
End Type
Corner Radius
Variable Helix
Yes
Center Cutting
Yes
Chip Breaker
No
Type
Z-Carb-HTA
Shank Length (Decimal)
1.6250
Corner Radius (Decimal)
0.0200
Corner Radius (Metric)
0.51
Length Type
Standard
Maximum Workpiece Hardness
45 HRC
Performance Class
High Performance
Rake
Positive
Shank Length (Fractional)
1-5/8
Shank Tolerance
h6
Workpiece Material
Steel, Stainless Steel, Cast Iron, High-Temp Alloy
SGS Corner Radius End Mill: 3/8" Dia, 7/8" LOC, 2-1/2" OAL, .020" Corner Radius, 4 Flute, AlTiN (Ti-NAMITE-A), Solid Carbide, 36555
$135.07
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
