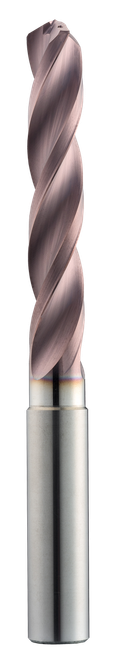

SGS Screw Machine Drill: 31/64" Dia, 3.032" Flute Length, 4.882" OAL, 124° Point, Internal Coolant, TM (Ti-NAMITE-M), Solid Carbide, 55187

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-55187
$743.06

SGS 141K screw machine drill for cast iron, 3 flutes, 30 degree helix, 124 degree point, spiral flutes, straight shank, internal coolant. Solid carbide, Ti-NAMITE-M coating. Manufacturer part number 55187.

Specifications

Series
141K
Unit of Measure
Inch
Shank Length (Decimal)
1.7720
Hand Direction
Right
Material
Solid Carbide
Cutting Diameter (Decimal)
0.4844
Cutting Diameter (Metric)
12.30
Shank Diameter (Decimal)
0.5512
Shank Diameter (Metric)
14.00
Overall Length (Decimal)
4.8820
Overall Length (Metric)
124.00
Flute Type
Spiral
Helix Angle
30 degrees
Size System
Fractional
Secondary Workpiece Material
Steel, Stainless Steel, Non-Ferrous, High-Temp Alloy
Cutting Diameter Tolerance (Decimal)
+0.00028 / +0.00098
Cutting Diameter Tolerance (Metric)
+0.0071 / +0.0251
Number of Flutes
3
Coolant Option
Internal Coolant
Coating/Finish
Ti-NAMITE-M
Shank Type
Straight
Helix Direction
Right
Performance Class
High Performance
Variable Helix
No
Shank Length (Metric)
45.01
Chip Breaker
No
Point Angle
124 degrees
Flute Length (Decimal)
3.0320
Flute Length (Metric)
77.01
DIN Standard
DIN 6537
Number of Margins
3
Usable Length (Decimal)
2.3622
Usable Length (Metric)
60.00
Self Centering
Yes
Reach Multiple
5xD
Cutting Diameter (Fractional)
31/64
Shank Tolerance
h6
Workpiece Material
Cast Iron
SGS Screw Machine Drill: 31/64" Dia, 3.032" Flute Length, 4.882" OAL, 124° Point, Internal Coolant, TM (Ti-NAMITE-M), Solid Carbide, 55187
$743.06
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
