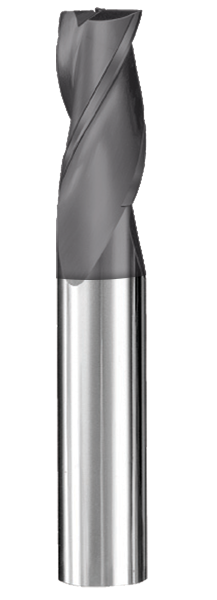

SGS 31/64" Dia, 3 Flute, Square End End Mill - 30841

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-30841
$196.98
SGS 31/64" Dia, 1" LOC, 1/2" Shank Dia, 3 Flute, 30 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series 05S, Square End End Mill - 30841

Specifications

Series
05S
Unit of Measure
Fractional
Diameter
31/64 Inch
Length of Cut
1 Inch
Shank Size
1/2 Inch
Number Of Flutes
3
Shank Type
Straight
Overall Length
3 Inch
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
AlTiN
Cutting Diameter (Decimal)
0.49
Cutting Diameter (Metric)
12.30
Length of Cut (Decimal)
1
Length of Cut (Metric)
25.40
Shank Diameter (Decimal)
0.50
Shank Diameter (Metric)
12.70
Overall Length (Decimal)
3
Overall Length (Metric)
76.20
Flute Type
Spiral
Helix Angle
30 degrees
End Configuration
Square End
Primary Workpiece Material
"(P) Steel, (M) Stainless Steel, (K) Cast Iron, (N) Non-Ferrous Materials, (S) High Temp Alloy"
Secondary Workpiece Material
(H) Hardened Materials
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Shank Diameter Tolerance (ISO)
h6
Coolant Option
External Coolant
Coating Description
Ti-NAMITE-A (AlTiN)
Additional Geometry
Right Hand Cut Direction (RHC)
Rake Angle
Positive
High Performance
No
Weldon Flat
No
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
SGS 31/64" Dia, 3 Flute, Square End End Mill - 30841
$196.98
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
