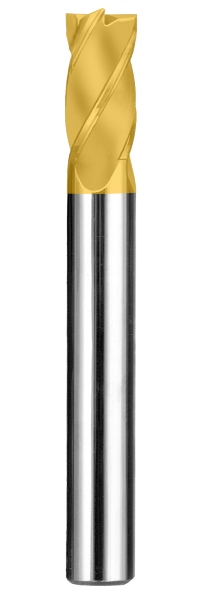

SGS 31/64" Dia, 4 Flute, Square End End Mill - 39161

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-39161
$197.65
SGS 31/64" Dia, 1" LOC, 1/2" Shank Dia, 4 Flute, 30 Degree Helix, Ti-NAMITE (TiN) Coated, Series 01S, Square End End Mill - 39161

Specifications

Series
01S
Unit of Measure
Fractional
Diameter
31/64 Inch
Length of Cut
1 Inch
Shank Size
1/2 Inch
Number Of Flutes
4
Shank Type
Straight
Overall Length
3 Inch
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
TiN
Cutting Diameter (Decimal)
0.49
Cutting Diameter (Metric)
12.30
Length of Cut (Decimal)
1
Length of Cut (Metric)
25.40
Shank Diameter (Decimal)
0.50
Shank Diameter (Metric)
12.70
Overall Length (Decimal)
3
Overall Length (Metric)
76.20
Flute Type
Spiral
Helix Angle
30 degrees
End Configuration
Square End
Primary Workpiece Material
"(P) Steel, (M) Stainless Steel, (K) Cast Iron, (N) Non-Ferrous Materials, (S) High Temp Alloy"
Secondary Workpiece Material
(H) Hardened Materials
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Shank Diameter Tolerance (ISO)
h6
Coolant Option
External Coolant
Coating Description
Ti-NAMITE (TiN)
Additional Geometry
Right Hand Cut Direction (RHC)
Rake Angle
Positive
High Performance
No
Weldon Flat
No
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
SGS 31/64" Dia, 4 Flute, Square End End Mill - 39161
$197.65
