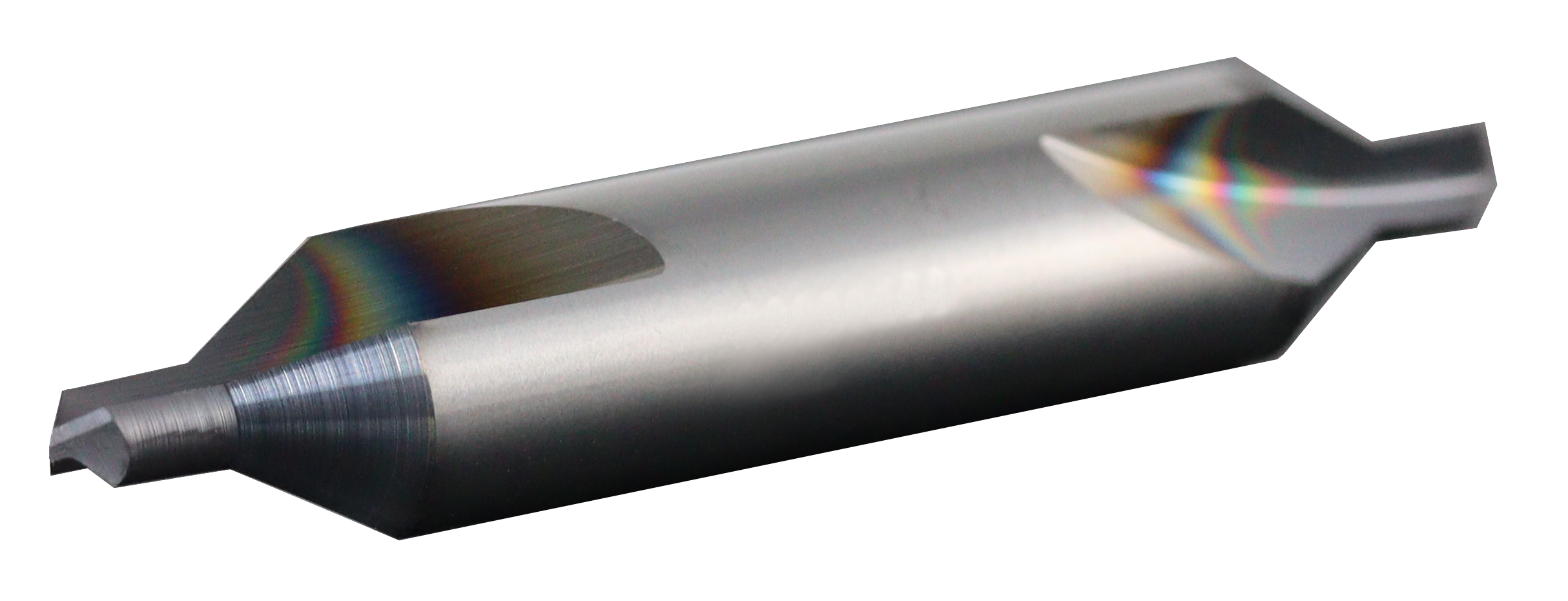

SGS #6 7/32" Dia, 118 Degree, 2 Flute, Countersink - 57012

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-57012
$279.54
SGS #6 7/32" Dia, 118 Degree, 2 Flute, 1/2" Body Dia, Uncoated, Series 301, General Application Drill and Countersink Combo - 57012

Specifications

Series
301
Unit of Measure
Fractional
Number Of Flutes
2
Shank Type
Straight
Overall Length
3 Inch
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
Uncoated
Cutting Diameter (Decimal)
0.22
Cutting Diameter (Metric)
5.56
Overall Length (Decimal)
3
Overall Length (Metric)
76.20
Flute Type
Spiral
Primary Workpiece Material
"(P) Steel, (M) Stainless Steel, (K) Cast Iron, (N) Non-Ferrous Materials, (S) High Temp Alloy"
Secondary Workpiece Material
(H) Hardened Materials
Coolant Option
External Coolant
Coating Description
Uncoated
Additional Geometry
Right Hand Cut Direction (RHC)
High Performance
No
Weldon Flat
No
Variable Helix
No
Center Cutting
No
Chip Breaker
No
Chamfer Angle (a)
30 degrees
Max. Cutting Diameter
7/32 Inch
Point Angle
118 degrees
Cutting Diameter (Wire)
#6
Body Diameter (Decimal)
0.50
Body Diameter (Metric)
12.70
Body Diameter (Fractional)
1/2
Flute Length (Decimal)
0.94
Flute Length (Metric)
23.83
Shank Length (Decimal)
1.13
Shank Length (Metric)
28.55
Number of Margins
2
SGS #6 7/32" Dia, 118 Degree, 2 Flute, Countersink - 57012
$279.54
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
