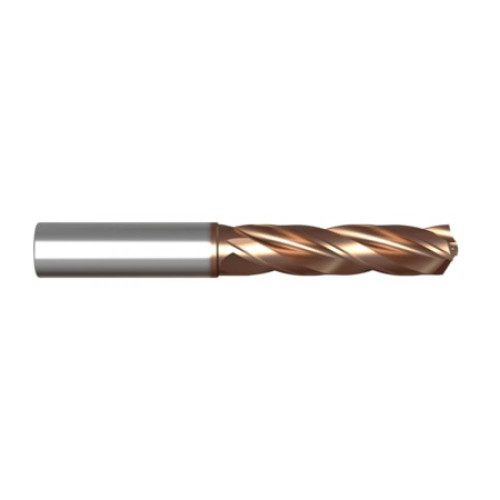

17/64 x 5/16 x 34 x 79 CARBIDE DREAM DRILL HIGH FEED 3XD W/ COOLANT HOLE (H COATING

YG-1

No reviews yet Write a Review
SKU:
YG1-DGR496017
$216.35

Specifications

Unit of Measure
Inch
Cutting Diameter (Metric)
6.75
Shank Diameter (Metric)
7.94
Overall Length (Metric)
79.00
Material
Solid Carbide
Shank Diameter (Decimal)
0.3125
Shank Diameter (Fractional)
5/16
Overall Length (Decimal)
3.1102
Coating/Finish
H-Coating
Type
High Feed
Point Angle
140 degrees
Flute Length (Decimal)
1.3386
LxD Ratio
3xD
Flute Length (Metric)
34.00
Size System
Fractional
Cutting Diameter (Decimal)
0.2656
Coolant Option
Internal Coolant
Workpiece Material
Steel, Cast Iron
Cutting Diameter (Fractional)
17/64
Cutting Diameter Tolerance
m7
Shank Tolerance
h6
Blank Standard
DIN 6537
17/64 x 5/16 x 34 x 79 CARBIDE DREAM DRILL HIGH FEED 3XD W/ COOLANT HOLE (H COATING
$216.35
