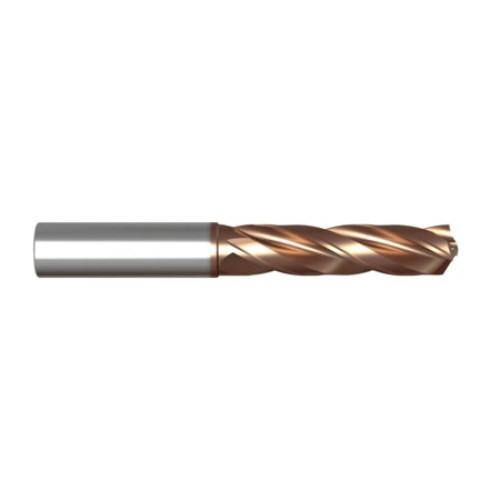

.272 x 5/16 x 34 x 79 CARBIDE DREAM DRILL HIGH FEED 3XD W/ COOLANT HOLE (H COATING

YG-1

No reviews yet Write a Review
SKU:
YG1-DGR496209
$216.35

Specifications

Unit of Measure
Metric
Diameter
6.91 mm
Shank Size
7.94 mm
Overall Length
79 mm
Cutting Direction
Right
Material
Carbide
Shank Diameter (Decimal)
0.32
Shank Diameter (Fractional)
5/16
Overall Length (Decimal)
3.12
Overall Length (Fractional)
3-1/9
Type
High Feed
Point Angle
140 degrees
Flute Length (Decimal)
1.34
Flute Length (Fractional)
1-21/62
Flute Length
34 mm
Point Length (Decimal)
0.05
Point Length (Metric)
1.26
Length Of Cut
3
Diameter (Decimal)
0.28
Through Coolant
Yes
Workpiece Material
"Steel, Cast Iron"
Diameter (Fractional)
3/11
Drill Point Length (Decimal)
0.05
Drill Point Length (Metric)
1.26
Hole Tolerance
M7
Shank Tolerance
H6
Letter Size
I
Blank Standard
DIN 6537
.272 x 5/16 x 34 x 79 CARBIDE DREAM DRILL HIGH FEED 3XD W/ COOLANT HOLE (H COATING
$216.35
