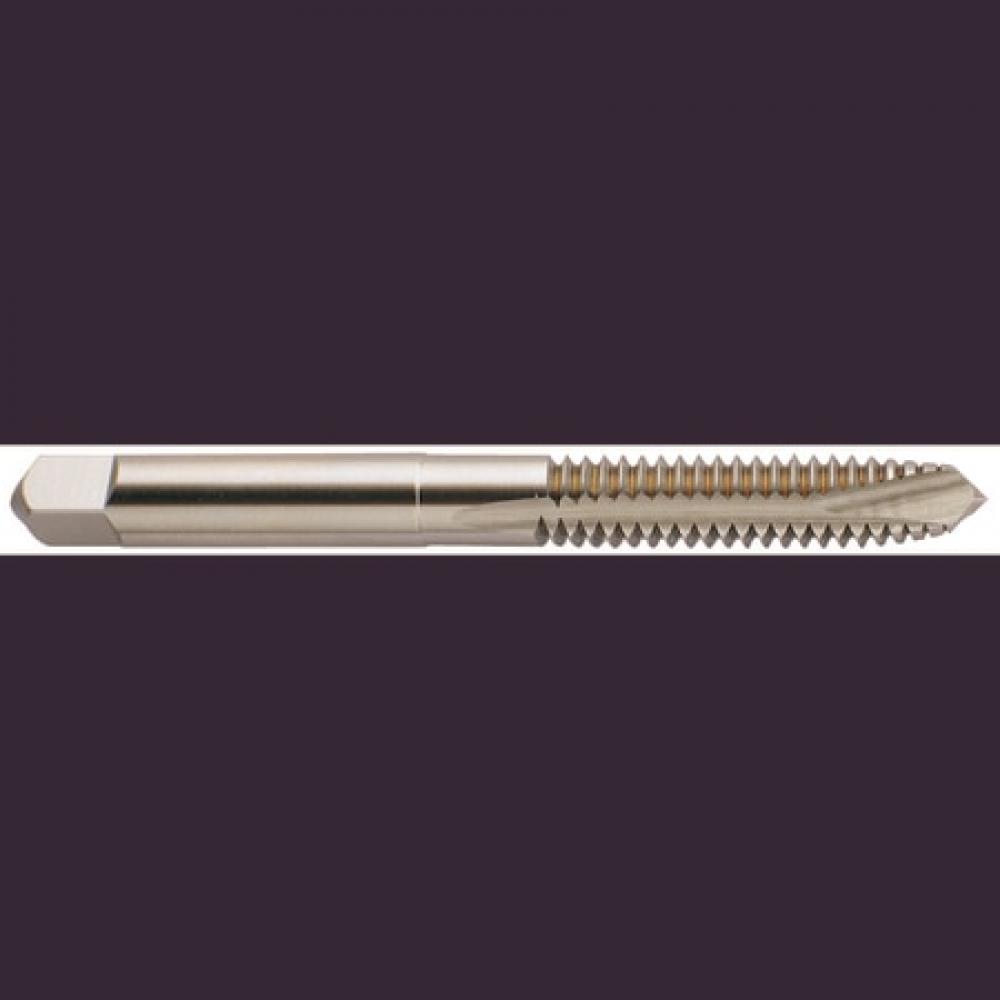

2FL HSS SP PT PLUG STEAM OXIDE TAP FOR GENERAL PURPOSE

YG-1

No reviews yet Write a Review
SKU:
YG1-T6216327
$11.99

Specifications

Unit of Measure
Imperial
Diameter
0.19 Inch
Number Of Flutes
2
Shank Type
Square
Overall Length
2.38 Inch
Cutting Direction
Right
Material
HSS
Coating/Finish
Oxide
Shank Diameter (Decimal)
0.20
Shank Diameter (Metric)
4.93
Overall Length (Metric)
60.45
Type
General Purpose
Through Coolant
No
Diameter (Metric)
4.83
Thread Standard
UNC
Thread Size
#10
Depth Of Cut
3 x D
Thread Limit
H7
Chamfer
Plug
Thread Pitch
24
Blank Standard
302
Chamfer Length
4P-5P
Connection (Decimal)
0.20 x 0.16
Connection (Metric)
4.93 x 3.86
Drill Size (Decimal)
0.16
Drill Size (Metric)
3.86
Square Length (Decimal)
0.25
Square Length (Metric)
6.35
Square Size (Decimal)
0.16
Square Size 2 (Decimal)
0.25
Square Size (Metric)
3.86
Square Size 2 (Metric)
6.35
Thread Length (Decimal)
0.88
Thread Length (Metric)
22.35
Useable Length (Decimal)
0.88
Useable Length (Metric)
22.35
2FL HSS SP PT PLUG STEAM OXIDE TAP FOR GENERAL PURPOSE
$11.99
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
