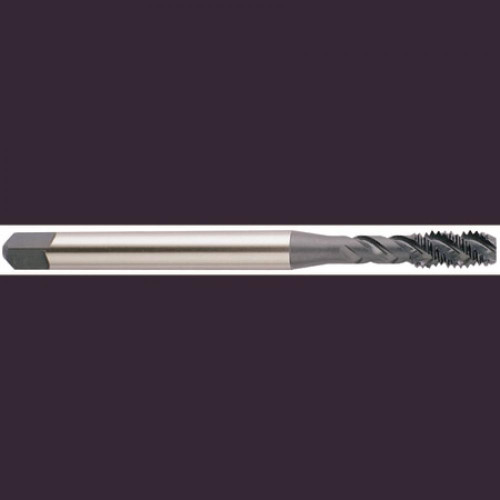

3/8-16 3FL SP FL BOTTOM G/T LONG SHANK HARDSLICK TAP

YG-1

No reviews yet Write a Review
SKU:
YG1-H0483
$105.57

Specifications

Unit of Measure
Imperial
Diameter
0.38 Inch
Number Of Flutes
3
Shank Type
Square
Overall Length
6 Inch
Cutting Direction
Right
Coating/Finish
Hardslick
Shank Diameter (Decimal)
0.39
Shank Diameter (Metric)
9.68
Overall Length (Metric)
152.40
Neck Diameter (Decimal)
0.29
Neck Diameter (Metric)
7.29
Diameter (Metric)
9.53
Thread Standard
UNC
Thread Size
3/8
Depth Of Cut
2.50 x D
Thread Limit
H3
Chamfer
Modified Bottoming
Thread Pitch
16
Blank Standard
302A
Chamfer Length
2P-3P
Connection (Decimal)
0.39 x 0.29
Connection (Metric)
9.68 x 7.26
Drill Size (Decimal)
0.32
Drill Size (Metric)
8.08
Square Length (Decimal)
0.44
Square Length (Metric)
11.18
Square Size (Decimal)
0.29
Square Size 2 (Decimal)
0.44
Square Size (Metric)
7.26
Square Size 2 (Metric)
7.26
Thread Length (Decimal)
0.56
Thread Length (Metric)
14
Useable Length (Decimal)
1.26
Useable Length (Metric)
31.80
3/8-16 3FL SP FL BOTTOM G/T LONG SHANK HARDSLICK TAP
$105.57
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
