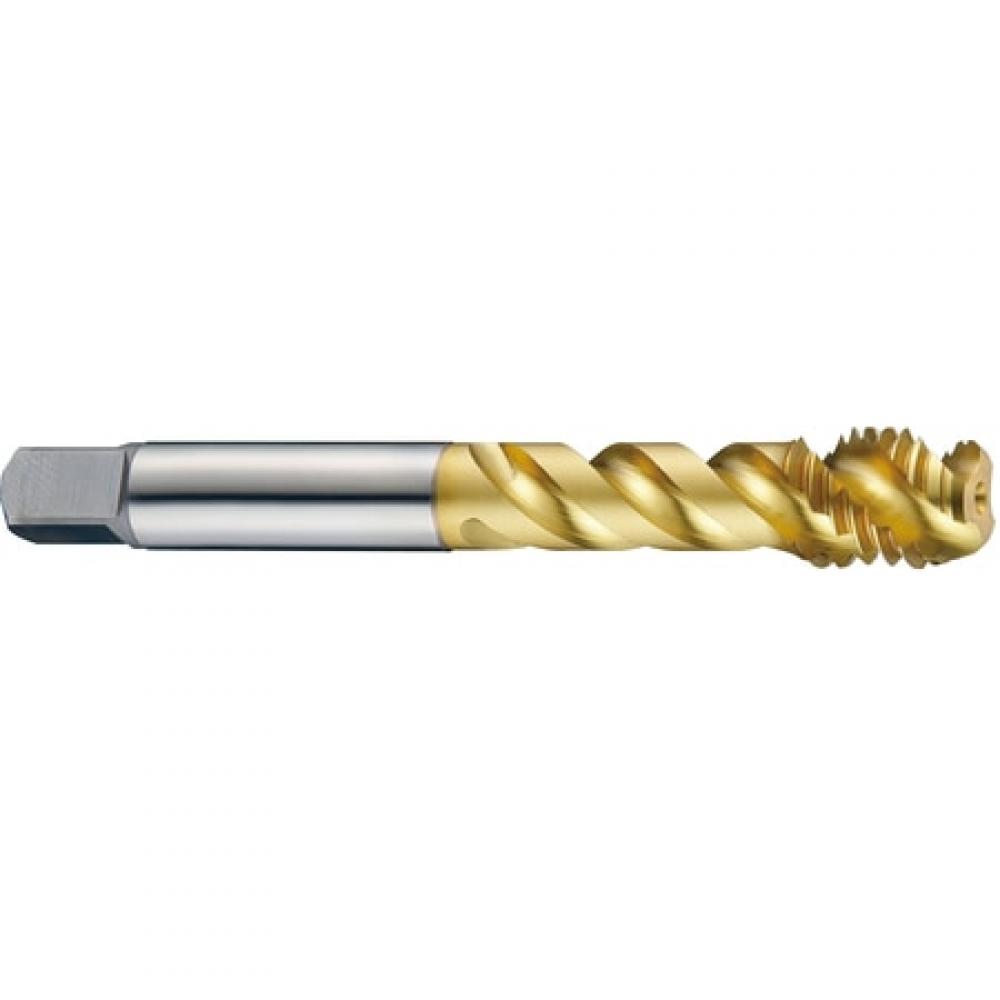

7/16-20UNF H3 80.2L Spiral flute for high speed tapping

YG-1

No reviews yet Write a Review
SKU:
YG1-TTS65543
$65.42

Specifications

Unit of Measure
Inch
Shank Type
Square
Coating/Finish
TiN
Shank Diameter (Decimal)
0.3230
Shank Diameter (Metric)
8.20
Overall Length (Decimal)
3.1600
Overall Length (Metric)
80.26
Helix Angle
45 degrees
Neck Length (Decimal)
1.8500
Neck Length (Metric)
46.99
Thread Standard
UNF
Thread Size
7/16-20
LxD Ratio
2.5xD
Thread Limit
H3
Thread Pitch (TPI)
20
Chamfer Length
2P-3P
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous
Drill Size (Metric)
9.96
Square Length (Decimal)
0.4100
Square Length (Metric)
10.41
Square Size (Decimal)
0.2420
Square Size (Metric)
6.15
Thread Length (Metric)
12.70
Usable Length (Decimal)
1.8500
Usable Length (Metric)
46.99
7/16-20UNF H3 80.2L Spiral flute for high speed tapping
$65.42
