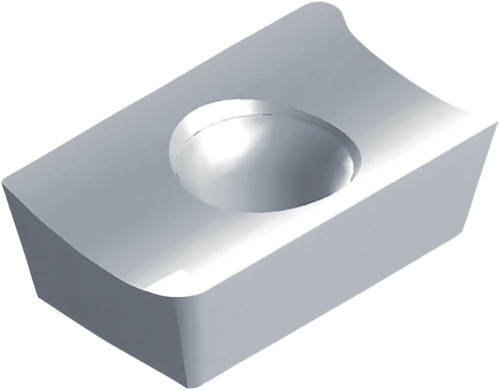

Kyocera APET 160416 KW10 Grade Uncoated Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-8832914
$46.72
Kyocera APET 160416 KW10 Grade Uncoated Carbide, Parallelogram, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (N) Non-Ferrous Metals

Specifications

Series
OTMA
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials
Corner Radius
1.60 mm
Corner Radius (Fractional)
1/16
Grade
KW10
Inscribed Circle (Metric)
9.53
Thickness
4.76 mm
Style
APET
Application
Chamfering, Countersinking, Facing, Shouldering, Slotting
Thickness (Fractional)
3/16
Shape
85 Degree Parallelogram
Insert Holding Method
Screw
Insert Length (Decimal)
0.63
Insert Length (Metric)
16
Old Material Number
8832914
ANSI Part Number
APET160416KW10
ISO Part Number
APET160416
Rake
Positive
Number of Cutting Edges
2
Insert Size
160416
Cutting Range
Roughing
Inscribed Circle (Fractional)
3/8
Insert Included Angle (Degree)
85 degrees
Pack quantity
10
Kyocera APET 160416 KW10 Grade Uncoated Carbide, Indexable Milling Insert
$46.72
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
