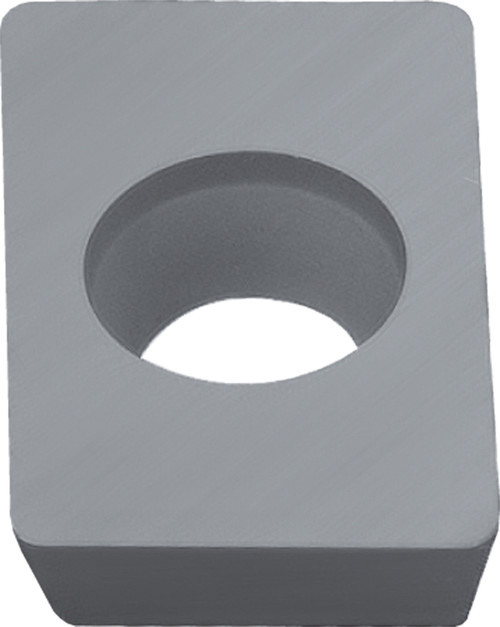

Kyocera NDCW 322FRX KW10 Grade Uncoated Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE00890
$42.72
Kyocera NDCW 322FRX KW10 Grade Uncoated Carbide, Parallelogram, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (N) Non-Ferrous Metals and (K) Gray Cast Iron, (S) Titanium Alloy

Specifications

Series
DMC
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials
Corner Radius
0.80 mm
Corner Radius (Fractional)
1/32
Grade
KW10
Inscribed Circle (Metric)
9.53
Thickness
3.18 mm
Style
NDCW
Application
Facing, Shouldering, Slotting
Thickness (Fractional)
1/8
Shape
Parallelogram
Insert Holding Method
Screw
Old Material Number
8805790
ANSI Part Number
NDCW322FRXKW10
ISO Part Number
NDCW150308FRX
Rake
Positive
Number of Cutting Edges
2
Insert Size
322
Chipbreaker
FRX
Cutting Range
Roughing
Inscribed Circle (Fractional)
3/8
Pack quantity
10
