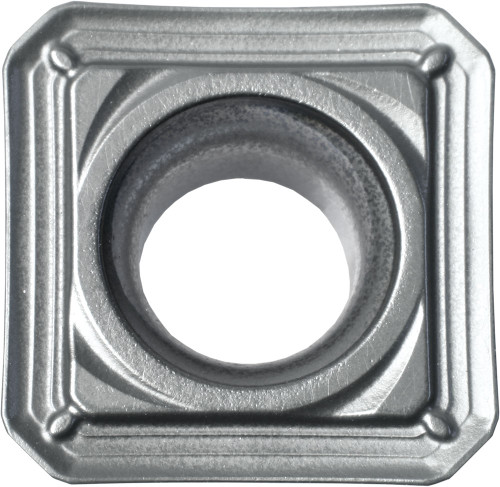

Kyocera SEKT 43AFENS TN100M Grade Uncoated Cermet, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSP60645
$28.04
Kyocera SEKT 43AFENS TN100M Grade Uncoated Cermet, Square, Positive Rake Angle, Neutral Milling Insert for Finishing in (P) Free-Cutting Steel, (P) Carbon/Alloy Steel, (P) Mold Steel

Specifications

Series
GPM
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Free-Cutting Steel|(P) Carbon/Alloy Steel|(P) Mold Steel
Grade
TN100M
Inscribed Circle (Metric)
12.70
Thickness
4.76 mm
Style
SEKT
Application
Chamfering, Facing, Shouldering
Thickness (Fractional)
3/16
Shape
90 Degree Square
Insert Holding Method
Screw
Old Material Number
8807751
ANSI Part Number
SEKT43AFENSTN100M
ISO Part Number
SEKT1204AFEN-S
Rake
Positive
Number of Cutting Edges
4
Insert Size
43
Chipbreaker
AFEN-S
Cutting Range
Finishing
Inscribed Circle (Fractional)
1/2
Insert Included Angle (Degree)
90 degrees
Pack quantity
10
Kyocera SEKT 43AFENS TN100M Grade Uncoated Cermet, Indexable Milling Insert
$28.04
