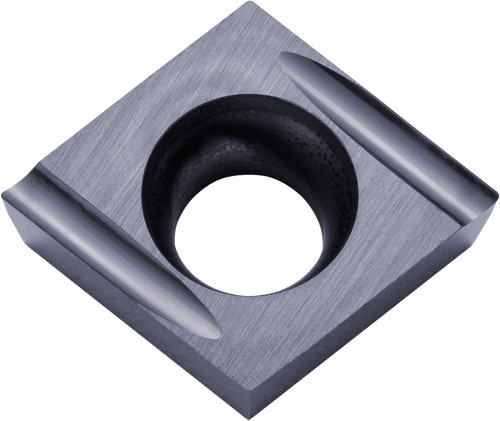

Kyocera Turning Insert CCET32502MFRU PR1725: TLM00029

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLM00029
$26.95

Kyocera ISOI turning insert for steel, 3/8 in (9.525 mm) IC, 80 degree diamond shape, positive rake, 2 cutting edges, finishing cutting range, screw or clamp insert holding, right hand. Carbide, MEGACOAT NANO PLUS (PVD) coating. Manufacturer part number TLM00029.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Carbide
Coating/Finish
MEGACOAT NANO PLUS
Insert Thickness (Fractional)
5/32
Included Angle
80
Corner Radius (Decimal)
0.0040
Insert Style
CCET
Insert Thickness (Metric)
3.97
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
32502
Secondary Workpiece Material
Stainless Steel
Machining Operations
Boring, External Turning, Facing, Internal Facing, Sub-Spindle
Insert Grade
PR1725
Rake
Positive
IC Size (Metric)
9.525
Corner Radius (Metric)
0.10
Number of Cutting Edges
2
Workpiece Material
Steel
ISO Designation
CCET09T301MFR-U
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
3/8
ANSI Designation
CCET32502MFRUPR1725
Chip Breaker Type
U
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
Coating Process
PVD
