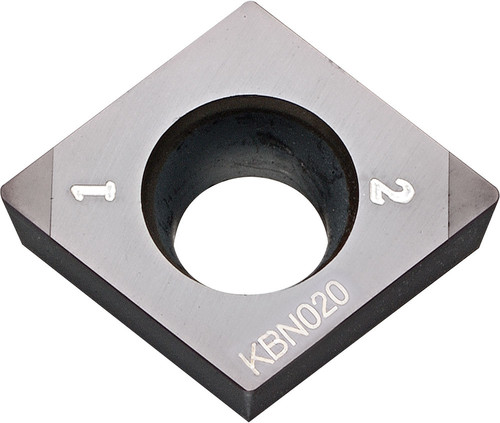

Kyocera Turning Insert CCMW32505T00315ME KBN020: TFC00004

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TFC00004
$121.55

Kyocera Turning Insert CCMW32505T00315ME KBN020, manufacturer part number TFC00004.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 5/32 in (3.97 mm); Corner Radius: 0.0080 in (0.20 mm); Insert Holding Method: Screw or Clamp; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing-Medium; Usage Classification: Continuous to Light Interruption; Insert Size: 32505; Hand Direction: Neutral; Insert Style: CCMW; Insert Shape: 80 Degree Diamond; ANSI Designation: CCMW32505T00315MEKBN020; ISO Designation: CCMW09T302T00815ME; Included Angle: 80 degrees; Machining Operations: Boring, External Turning, Facing, Internal Facing; Insert Grade: KBN020; Workpiece Material: Hardened Steel; Coating Process: PVD.

Material: CBN. Coating/Finish: MEGACOAT TOUGH. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
CBN
Coating/Finish
MEGACOAT TOUGH
Insert Thickness (Fractional)
5/32
Included Angle
80
Corner Radius (Decimal)
0.0080
Insert Style
CCMW
Insert Thickness (Metric)
3.97
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
32505
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Grade
KBN020
Rake
Positive
IC Size (Metric)
9.525
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Workpiece Material
Hardened Steel
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
3/8
ANSI Designation
CCMW32505T00315MEKBN020
ISO Designation
CCMW09T302T00815ME
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KBN020_Coated_CBN_for_Hardened_Material.pdf
Coating Process
PVD
Kyocera Turning Insert CCMW32505T00315ME KBN020: TFC00004
$121.55
