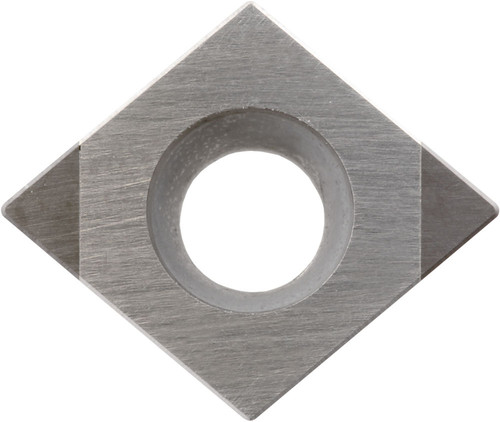

Kyocera Turning Insert CCMW32505T00315ME KBN05M: TBN01195

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBN01195
$115.75

Kyocera ISOI turning insert for hardened steel, 3/8 in (9.525 mm) IC, 80 degree diamond shape, positive rake, 2 cutting edges, finishing-medium cutting range, screw or clamp insert holding, neutral hand. CBN, MEGACOAT (PVD) coating. Manufacturer part number TBN01195.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
CBN
Coating/Finish
MEGACOAT
Insert Thickness (Fractional)
5/32
Included Angle
80
Corner Radius (Decimal)
0.0080
Insert Style
CCMW
Insert Thickness (Metric)
3.97
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
32505
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Grade
KBN05M
Rake
Positive
IC Size (Metric)
9.525
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Workpiece Material
Hardened Steel
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Fractional)
3/8
ANSI Designation
CCMW32505T00315MEKBN05M
ISO Designation
CCMW09T302T00815ME
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/KBN05M_W.pdf
Coating Process
PVD
Kyocera Turning Insert CCMW32505T00315ME KBN05M: TBN01195
