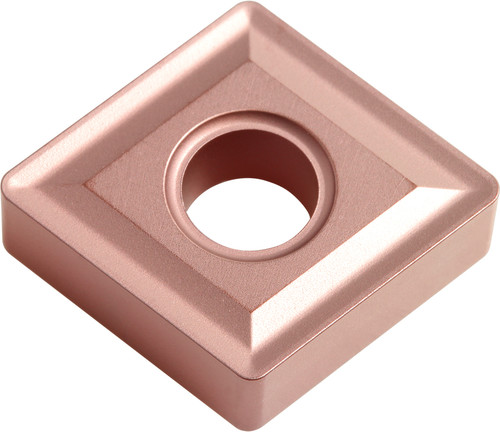

Kyocera Turning Insert CNMG544 CA310: TMC01032

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMC01032
$30.56

Kyocera ISOI turning insert for cast iron, 5/8 in (15.875 mm) IC, 80 degree diamond shape, negative rake, 4 cutting edges, roughing cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/Ti (CVD) coating. Manufacturer part number TMC01032.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/Ti
Insert Thickness (Metric)
6.35
Corner Radius (Fractional)
1/16
Included Angle
80
ANSI Designation
CNMG544CA310
Insert Style
CNMG
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
544
Insert Grade
CA310
Workpiece Material
Cast Iron
Rake
Negative
Insert Thickness (Fractional)
1/4
Corner Radius (Metric)
1.60
Number of Cutting Edges
4
Coating Process
CVD
Cutting Range
Roughing
Usage Classification
Continuous
IC Size (Metric)
15.875
ISO Designation
CNMG160616
IC Size (Fractional)
5/8
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA3-Series_W.pdf
