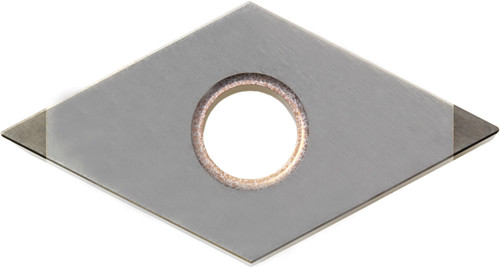

Kyocera DNGA 442S00730MET KBN05M Grade CBN, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBN02231
$108.64
Kyocera DNGA 442S00730MET KBN05M Grade CBN, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (H) Hardened Materials

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
CBN
Coating/Finish
PVD
Primary Workpiece Material
(H) Hardened Materials
Corner Radius
1/32 Inch
Included Angle
55 degrees
Thickness
1/4 Inch
Style
DNGA
Application
Boring, Copying, External Turning
Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
442
Old Material Number
8835337
ANSI Part Number
DNGA442S00730METKBN05M
ISO Part Number
DNGA150608S01730MET
Rake
Negative
Material Group / Grade
KBN05M
Corner Radius (Metric)
0.80
Number of Cutting Edges
2
Thickness (Metric)
6.35
Cutting Range
Finishing-Medium
Usage Classification
Continuous
Insert Included Angle
55 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
