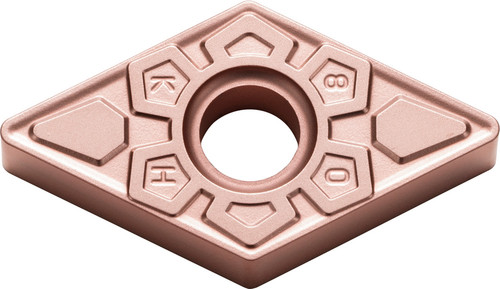

Kyocera Turning Insert DNMG442KH CA310: TMC02490

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMC02490
$32.91

Kyocera ISOI turning insert for cast iron, 1/2 in (12.70 mm) IC, 55 degree diamond shape, negative rake, 4 cutting edges, roughing cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/Ti (CVD) coating. Manufacturer part number TMC02490.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/Ti
Insert Thickness (Fractional)
1/4
Corner Radius (Fractional)
1/32
Included Angle
55
ANSI Designation
DNMG442KHCA310
Insert Style
DNMG
Insert Thickness (Metric)
6.35
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
442
Machining Operations
Boring, Copying, External Turning
Insert Grade
CA310
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.80
Number of Cutting Edges
4
Workpiece Material
Cast Iron
ISO Designation
DNMG150608KH
Cutting Range
Roughing
Usage Classification
Continuous
IC Size (Fractional)
1/2
Coating Process
CVD
Chip Breaker Type
KH
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA3-Series_W.pdf
