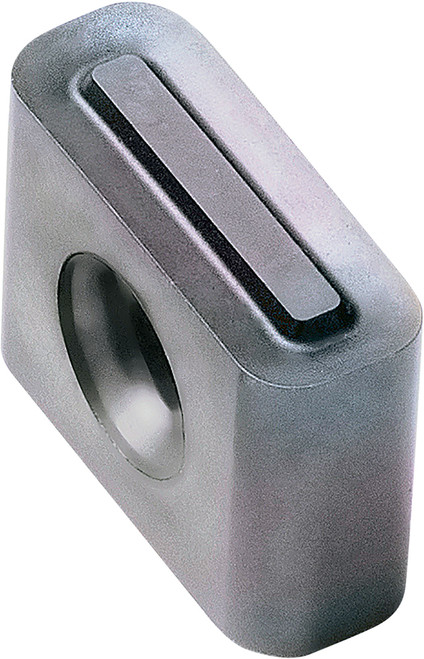

Kyocera LNGX 120916 PR1525 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLB40133
$63.91
Kyocera LNGX 120916 PR1525 Grade PVD Carbide, 90 Degree Rectangle, Negative Rake Angle, Neutral Milling insert for Finishing in (P) Free-Cutting Steel|(P) Carbon/Alloy Steel and (M) Austenitic Stainless Steel

Specifications

Series
MFF
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Free-Cutting Steel|(P) Carbon/Alloy Steel
Corner Radius
1.59 mm
Unit (inch/mm)
mm
Grade
PR1525
Inscribed Circle (Metric)
9.53
Thickness
6.35 mm
Style
LNGX
Application
Finish Milling
Thickness (Fractional)
1/4
Shape
90 Degree Rectangle
Insert Holding Method
Screw
Insert Length (Decimal)
0.50
Insert Length (Metric)
12.70
Old Material Number
8865635
ANSI Part Number
LNGX120916PR1525
ISO Part Number
LNGX120916
Rake
Negative
Number of Cutting Edges
2
Insert Size
120916
Chipbreaker
TT
Cutting Range
Finishing
Corner Radius (Decimal)
0.06
Inscribed Circle (Fractional)
3/8
Insert Included Angle (Degree)
90 degrees
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFF_Finishing_Face_Mills.pdf
