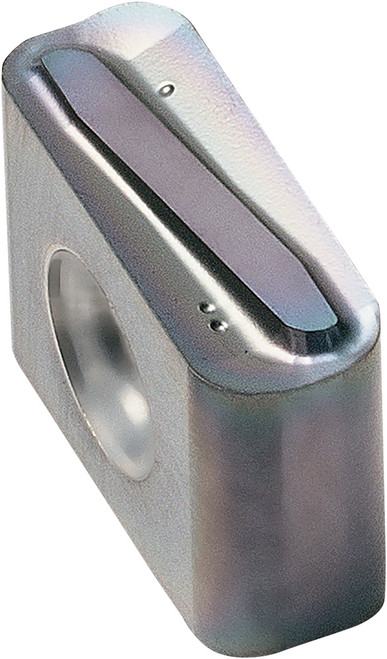

Kyocera LNGX 120916RTT PR1525 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLB40132
$63.91
Kyocera LNGX 120916RTT PR1525 Grade PVD Carbide, 90 Degree Rectangle, Negative Rake Angle, Right-Hand Milling insert for Finishing in (P) Free-Cutting Steel|(P) Carbon/Alloy Steel and (M) Austenitic Stainless Steel

Specifications

Series
MFF
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Free-Cutting Steel|(P) Carbon/Alloy Steel
Corner Radius
1.59 mm
Unit (inch/mm)
mm
Grade
PR1525
Inscribed Circle (Metric)
9.53
Thickness
6.35 mm
Style
LNGX
Application
Finish Milling
Thickness (Fractional)
1/4
Shape
90 Degree Rectangle
Insert Holding Method
Screw
Insert Length (Decimal)
0.50
Insert Length (Metric)
12.70
Old Material Number
8865634
ANSI Part Number
LNGX120916RTTPR1525
ISO Part Number
LNGX120916R-TT
Rake
Negative
Number of Cutting Edges
2
Insert Size
120916
Chipbreaker
TT
Cutting Range
Finishing
Corner Radius (Decimal)
0.06
Inscribed Circle (Fractional)
3/8
Insert Included Angle (Degree)
90 degrees
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFF_Finishing_Face_Mills.pdf
